2209 K 2RS T RICH 45x85x23

RICH
2209K2RST
€11.26
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

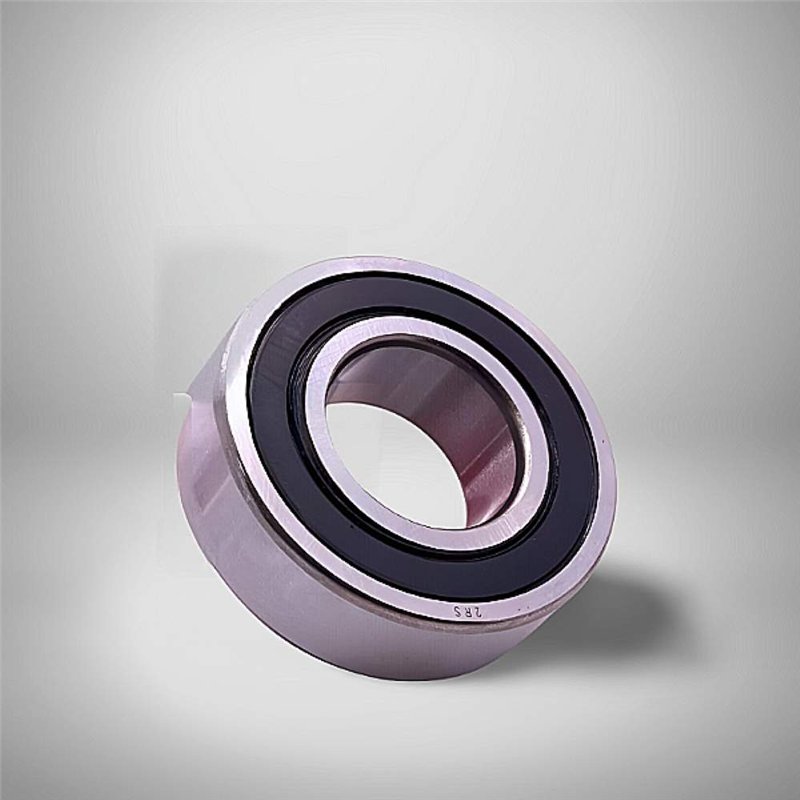

2209 K 2RS T RICH | Self‑Aligning Ball Bearing – 45 x 85 x 23 mm

Technical Specifications:

  • Catalog Code: 2209 K 2RS T RICH
  • Brand: RICH
  • Type: Self‑aligning ball bearing
  • Bore Diameter (d): 45 mm
  • Outer Diameter (D): 85 mm
  • Total Width (B): 23 mm
  • Weight: 0.527 kg
  • Cage: Textolite, outer ring centred
  • Clearance: CN – normal clearance
  • Sealing: Double‑sided rubber, contact (2RS)
  • Taper: 1:12
  • Country of Origin: China

Key Performance Advantages:

  • Self‑aligning design suitable for compensating shaft misalignment.
  • Textolite cage centred on the outer ring, ensuring stable guidance and consistent movement during rotation.
  • CN internal clearance as standard execution.
  • Double‑sided rubber contact seals (2RS) as specified.
  • Tapered bore 1:12 for mounting on adapter sleeves.

Cage Material Comparison:

Material Main Characteristics
Steel High strength, high rigidity, excellent wear resistance.
Polyamide Lightweight, low noise, suitable for standard applications.
Textolite Lightweight composite, high dimensional stability, suitable for dynamic and high‑speed applications.

Outer Ring Centred Cage:

The cage is guided by the outer ring, providing stable positioning and uniform movement during rotation.

Transparency Note: This bearing is manufactured under the RICH brand. The code 2209 K 2RS T is used solely for identification and does not imply affiliation with other brands.

Data sheet

Inner Diameter
45
Outer Diameter
85
Width
23
Weight
0,527
Sealing
Lip Seal On Both Sides
Cage
Steel
Category
Self-Aligning Ball Bearing
