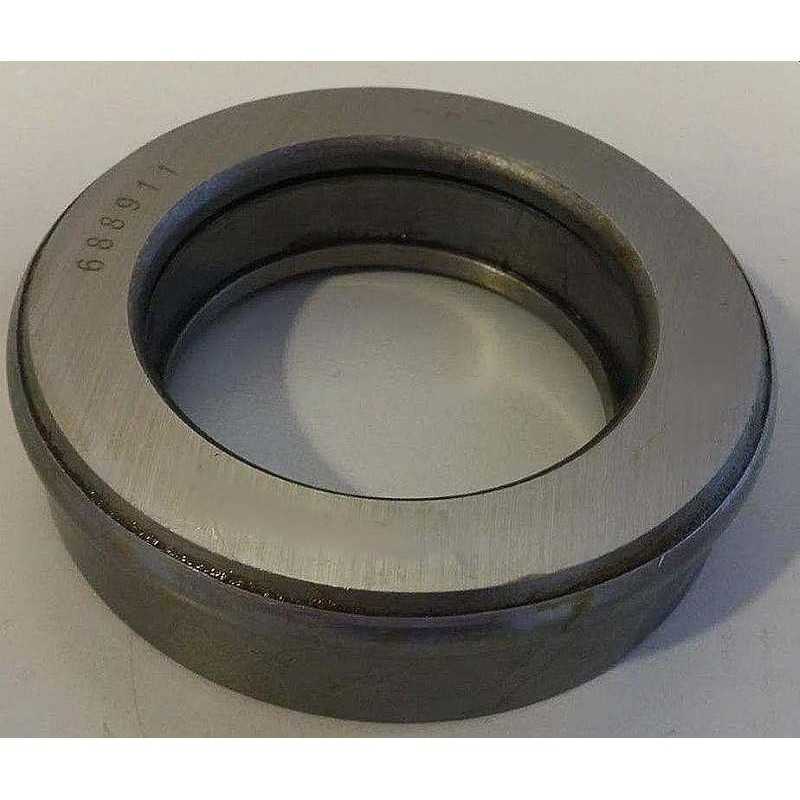

688911 RICH Axial Deep Groove Ball Bearing - 52.39x84.5x20.7 mm
Technical Specifications:
- Catalog Code: 688911 RICH
- Brand: RICH
- Type: Axial deep groove ball bearing (Thrust ball bearing)
- Dimensions: 52.39 x 84.5 x 20.7 mm
- Inner Diameter (d): 52.39 mm
- Outer Diameter (D): 84.5 mm (Housing washer 84.7 mm)
- Height (H/T): 20.7 mm
- Washer Width (B): 20 mm
- Sealing: Double-sided non-contact shields
- Weight: 0.4 kg
- Country of Origin: China
Key Performance Advantages:
- High Axial Load Capacity: Specifically designed to support heavy thrust loads in one direction with high precision.
- Non-Contact Shielding: Features double-sided shields that protect the internal rolling elements from debris without increasing frictional torque.
- Robust Construction: Deep groove raceways provide stable ball guidance and minimize noise during operation.
- Specialized Dimensions: Engineered with unique 52.39 mm bore and 84.5 mm diameter for specific industrial power transmission requirements.
Transparency Note: This product is manufactured under the RICH brand. The code 688911 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.
