81216 M RICH 80x115x28

81216 M RICH – Axial Cylindrical Roller Bearing – 80 x 115 x 28 mm

Technical Specifications:

• Type: Axial cylindrical roller bearing
• Brand: RICH
• Model Designation: 81216 M
• Inner Diameter (d): 80 mm
• Outer Diameter (D): 115 mm
• Total Height (H): 28 mm
• Cage Material: Machined brass (Rolling element guided)
• Weight: 1.024 kg
• Country of Origin: China

Performance Characteristics:

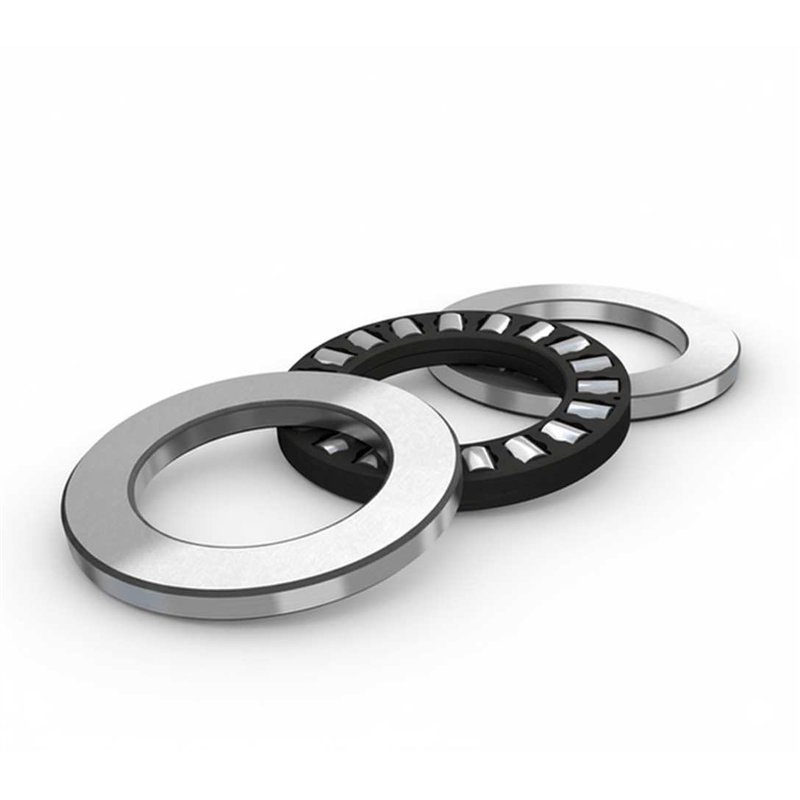

• Structural Configuration: Heavy-duty thrust bearing assembly consisting of a cylindrical roller and cage set, a shaft washer, and a housing washer.
• Cage Specification: Features a high-grade machined brass cage (M) guided by the rolling elements, offering superior thermal stability and mechanical strength.
• Load Management: Specifically engineered to support high axial loads in a single direction with high mechanical stiffness and minimal axial deflection.
• Mechanical Interface: 80 x 115 x 28 mm dimensional format manufactured to standardized industrial tolerances for consistent rotational performance.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
