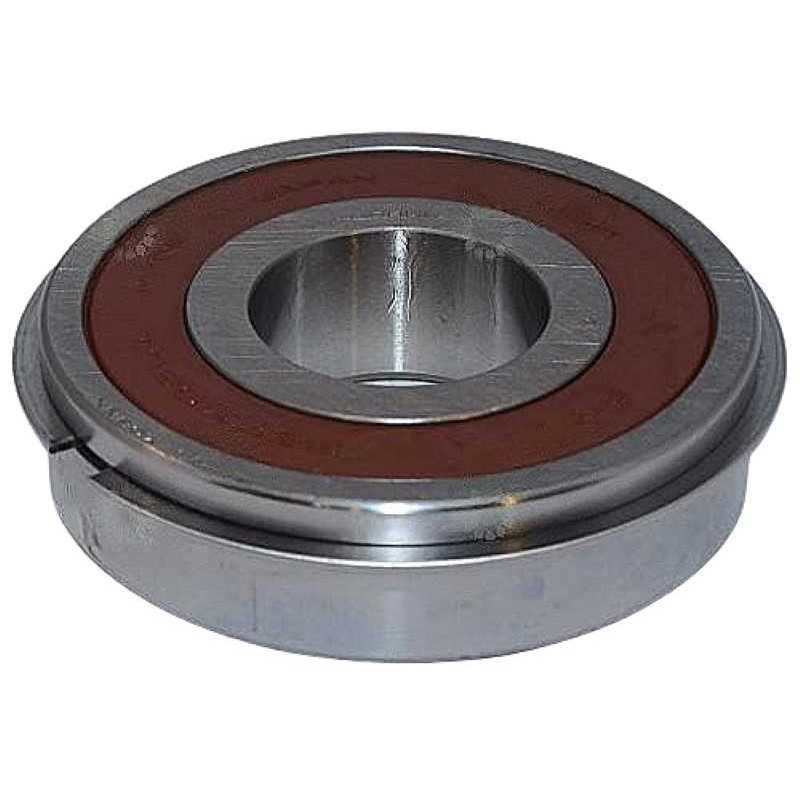

35TM08 NXR C3 RICH Single Row Deep Groove Ball Bearing - 35 x 85 x 23 mm
OE References:
Technical Specifications:
- Catalog Code: 35TM08 NXR C3 RICH
- Brand: RICH
- Type: Single row deep groove ball bearing
- Bore Diameter (d): 35 mm
- Outer Diameter (D): 85 mm
- Width (B): 23 mm
- Clearance: C3 (Greater than normal)
- Sealing: Double-sided rubber contact seals
- Feature: Outer ring groove with snap ring (NXR)
- Weight: 0.5 kg
- Country of Origin: China
Product Overview:
The 35TM08 NXR C3 RICH is a specialized single row deep groove ball bearing designed to deliver high performance in demanding automotive transmissions and industrial drivelines. This model features a C3 internal clearance, which provides the necessary room for thermal expansion during continuous high-speed operation. The inclusion of a snap ring groove on the outer ring ensures secure axial positioning within the housing, while the contact rubber seals offer superior protection against lubrication loss and environmental contaminants. Its robust internal architecture is optimized to maintain smooth rotation and stability under radial loads.
Key Performance Advantages:
- Thermal Resilience: C3 clearance prevents seizing during high-temperature operational cycles.
- Secure Mounting: The NXR snap ring configuration allows for precise and stable installation.
- Advanced Sealing: Dual-contact rubber seals maximize service life by keeping grease in and dust out.
- Toyota Compatibility: Specifically engineered to meet the structural requirements for Toyota 9036335027 applications.
Transparency Note: This bearing is manufactured under the RICH brand. The code 35TM08 NXR C3 and the OE references listed are used solely for identification and do not imply affiliation with other manufacturers.
