34BC08 S1 2MT2 N RICH 34x85x23 34BC08S12MT2NC2 RICH
zoom_out_map
34BC08 S1 2MT2 N RICH 34x85x23 34BC08S12MT2NC2 RICH

34BC08 S1 2MT2 N RICH 34x85x23

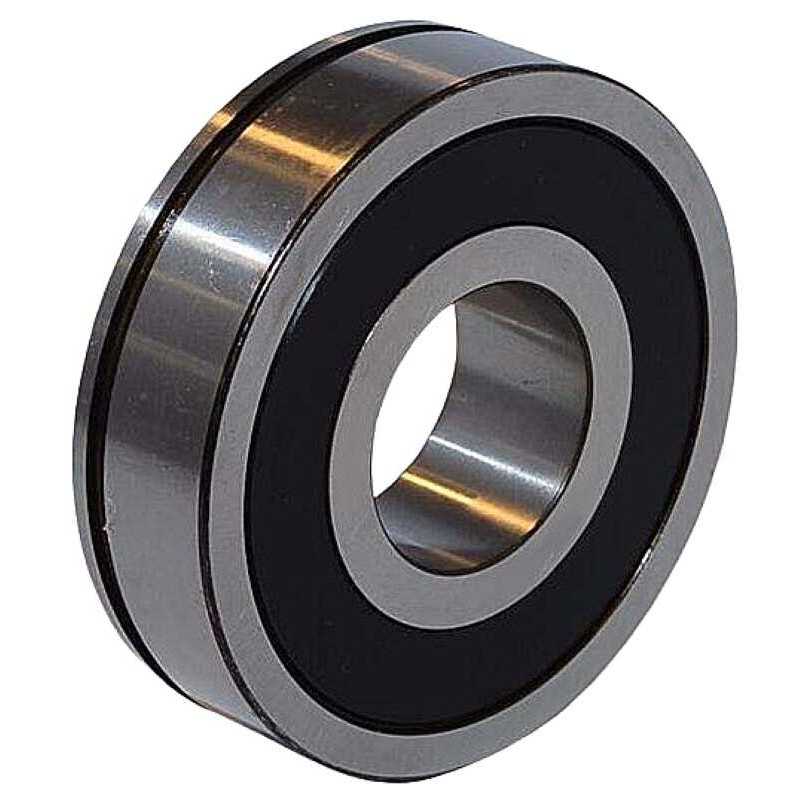

Type: Single Row Deep Groove Ball Bearing
Model: 34BC08 S1 2MT2 N RICH
Dimensions: 34 x 85 x 23 mm
Sealing: Double-sided contact rubber seals
Clearance: C2 (Smaller than normal)
OE Compatibility: TOYOTA 90363-34002
Brand: RICH
Origin: China
RICH
34BC08S12MT2NC2
€42.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

34BC08 S1 2MT2 N RICH Single Row Deep Groove Ball Bearing - 34 x 85 x 23 mm

OE References:

  • 90363-34002 TOYOTA

Technical Specifications:

  • Catalog Code: 34BC08 S1 2MT2 N RICH
  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Bore Diameter (d): 34 mm
  • Outer Diameter (D): 85 mm
  • Width (B): 23 mm
  • Clearance: C2 (Smaller than normal)
  • Outer Ring Feature: Groove with snap ring (N)
  • Cage: Steel
  • Sealing: Double-sided rubber contact seals (2MT2)
  • Weight: 0.55 kg
  • Country of Origin: China

Product Overview:

The 34BC08 S1 2MT2 N RICH is a high-precision automotive bearing specifically engineered for Toyota drivetrain and transmission assemblies, serving as a direct replacement for OE reference 90363-34002. This model is characterized by its C2 internal clearance, which is smaller than normal to provide increased radial rigidity and extremely precise shaft guidance, minimizing vibration in sensitive gearbox components. It features an integrated snap ring groove and snap ring on the outer ring for absolute axial security within the housing. To ensure long-term durability in harsh environments, it is equipped with double-sided rubber contact seals that effectively retain specialized internal grease while blocking the entry of road debris and moisture. The robust steel cage maintains perfect ball alignment even under the fluctuating torque loads typical of Toyota vehicles.

Key Performance Advantages:

  • High Precision C2 Clearance: Reduced internal play for enhanced stability and lower noise levels during operation.
  • OE-Grade Integration: Specifically manufactured to meet the technical tolerances of the Toyota 90363-34002 specification.
  • Total Sealing Protection: 2MT2 contact seals provide a superior barrier against external contaminants.
  • Snap Ring Stability: The N-type outer ring allows for rapid, secure installation and prevents axial migration during use.

Transparency Note: This bearing is manufactured under the RICH brand. The code 34BC08 S1 2MT2 N and the OE reference listed are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
34
Outer Diameter
85
Width
23
Weight
0,55
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
