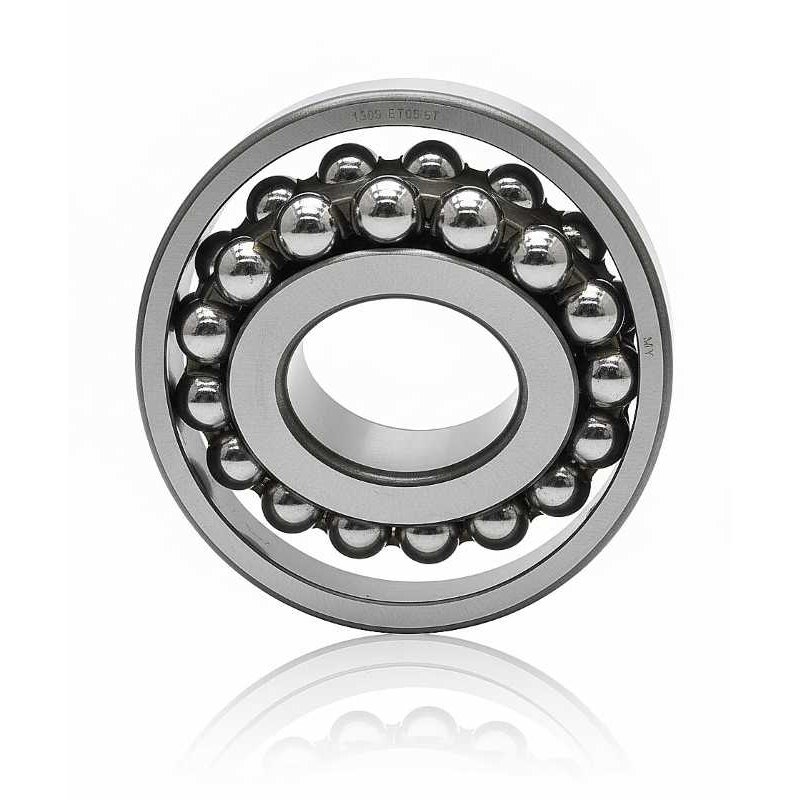

1314 RICH 70x150x35 1314 RICH
zoom_out_map
1314 RICH 70x150x35 1314 RICH

1314 RICH 70x150x35

Type: Self‑Aligning Ball Bearing
Model: RICH 1314
Cage: Steel
Clearance: CN
Sealing: Open Type
Weight: 3.021 kg
Origin: China
Brand: RICH
RICH
1314
€11.18
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

1314 RICH | Self‑Aligning Ball Bearing – 70 × 150 × 35

Technical Specifications:

  • Brand: RICH
  • Type: Self‑Aligning Ball Bearing
  • Inner Diameter (d): 70 mm
  • Outer Diameter (D): 150 mm
  • Width (B): 35 mm
  • Cage: Steel
  • Clearance: CN (Normal Clearance)
  • Sealing: Open Type (No Seals)
  • Weight: 3.021 kg
  • Country of Origin: China

Performance Characteristics:

  • Spherical Raceway: The outer ring raceway is spherical, allowing compensation for angular misalignment between shaft and housing.
  • Dual‑Row Configuration: The two ball rows distribute loads uniformly and maintain stable rotation under radial and moderate axial loads.
  • Steel Cage: The pressed steel cage provides structural rigidity and consistent ball guidance.
  • CN Clearance: Normal internal clearance suitable for standard thermal expansion and alignment conditions.
  • Open Design: The absence of sealing elements allows external lubrication and direct inspection of the rolling elements.

The 1314 RICH bearing is a self‑aligning ball bearing with a dual‑row configuration and spherical outer raceway. The CN clearance and steel cage support stable operation in assemblies where shaft or housing misalignment may occur.

Transparency Note: This bearing is manufactured under the RICH brand. All technical data refer exclusively to the RICH 1314 model and do not imply association with other manufacturers.

Data sheet

Inner Diameter
70
Outer Diameter
150
Width
35
Category
Self‑Aligning Ball Bearing
