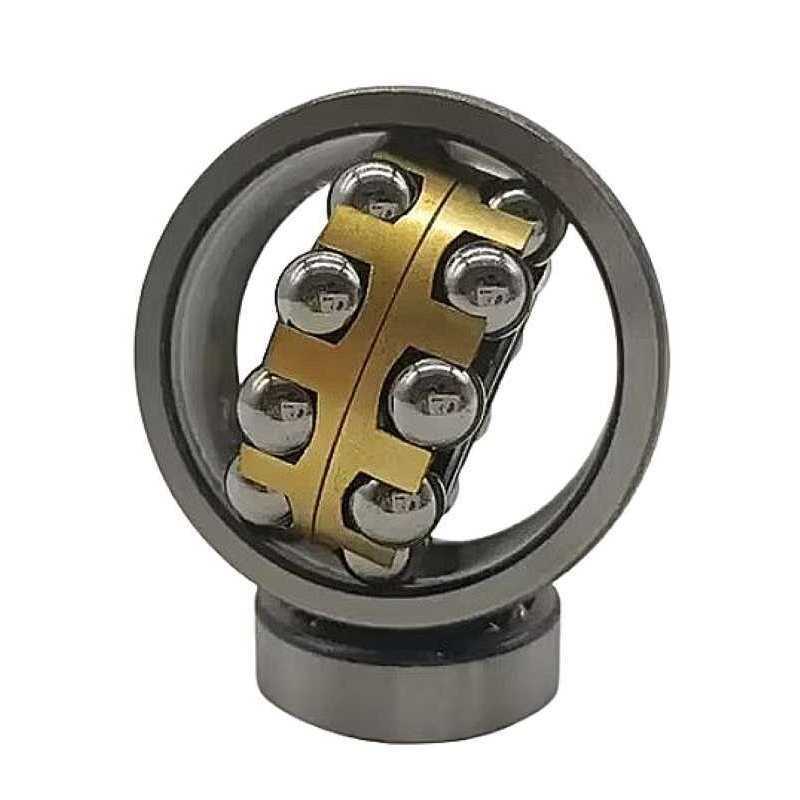

1315-K-M-C3 RICH 75x160x37 1315-K-M-C3 RICH
zoom_out_map
1315-K-M-C3 RICH 75x160x37 1315-K-M-C3 RICH

1315-K-M-C3 RICH 75x160x37

Type: Self‑Aligning Ball Bearing
Model: RICH 1315-K-M-C3
Cage: Brass, guided by rolling elements
Clearance: C3
Taper: 1:12
Sealing: Open Type
Weight: 3.681 kg
Origin: China
Brand: RICH
RICH
1315-K-M-C3
€21.65
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

1315-K-M-C3 RICH | Self‑Aligning Ball Bearing – 75 × 160 × 37

Technical Specifications:

  • Brand: RICH
  • Type: Self‑Aligning Ball Bearing
  • Inner Diameter (d): 75 mm
  • Outer Diameter (D): 160 mm
  • Width (B): 37 mm
  • Cage: Brass
  • Clearance: C3 (Greater than Normal)
  • Sealing: Open Type (No Seals)
  • Taper: 1:12 Tapered Bore (K)
  • Weight: 3.681 kg
  • Country of Origin: China

Performance Characteristics:

  • Spherical Raceway: The outer ring raceway is spherical, allowing compensation for angular misalignment between shaft and housing.
  • Dual‑Row Configuration: The two ball rows distribute loads uniformly and maintain stable rotation under radial and moderate axial loads.
  • Brass Cage: The machined brass cage, guided by the rolling elements, provides high mechanical stability and supports continuous operation under elevated loads.
  • C3 Clearance: Increased internal clearance supports higher operating temperatures and speeds.
  • Tapered Bore 1:12: The K‑type tapered bore allows mounting on adapter sleeves and supports secure shaft seating.
  • Open Design: The absence of sealing elements allows external lubrication and direct inspection of the rolling elements.

The 1315-K-M-C3 RICH bearing is a self‑aligning ball bearing with a spherical outer raceway, C3 internal clearance and a 1:12 tapered bore. The machined brass cage, guided by the rolling elements, supports stable operation in applications with increased thermal expansion and misalignment.

Transparency Note: This bearing is manufactured under the RICH brand. All technical data refer exclusively to the RICH 1315-K-M-C3 model and do not imply association with other manufacturers.

Data sheet

Inner Diameter
75
Outer Diameter
160
Width
37
Cage
Brass
Clearance
C3 (Greater than Normal)
Category
Self‑Aligning Ball Bearing
