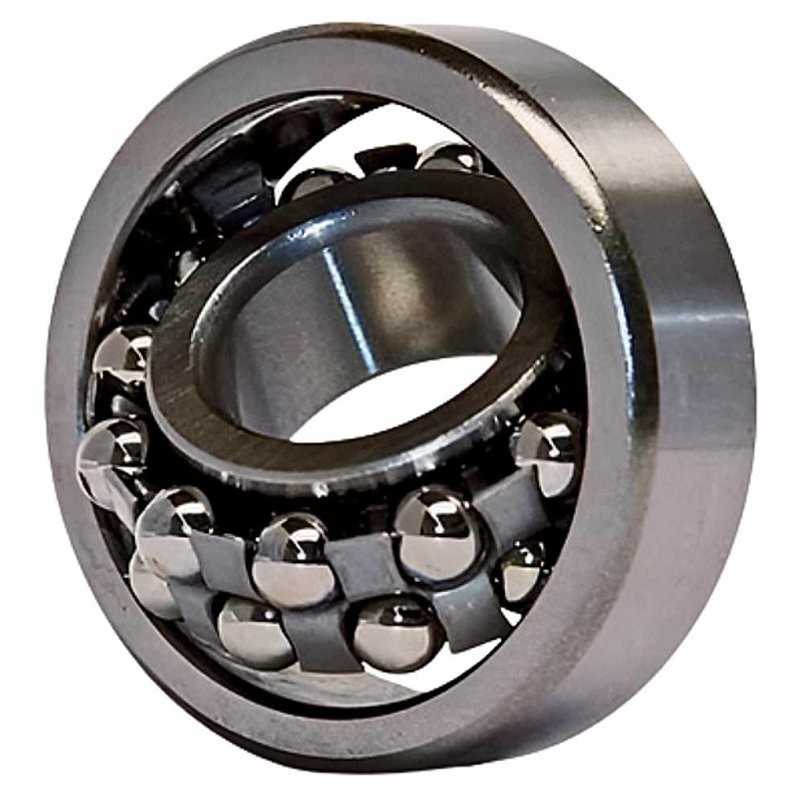

2309-C3 RICH Double Row Self-Aligning Ball Bearing - 45 x 100 x 36 mm
Technical Specifications:
- Catalog Code: 2309-C3 RICH
- Brand: RICH
- Type: Self-aligning ball bearing (Double row)
- Bore Diameter (d): 45 mm
- Outer Diameter (D): 100 mm
- Width (B): 36 mm
- Internal Clearance: C3 (Greater than Normal)
- Cage Material: Steel
- Sealing: Open (None)
- Weight: 1.25 kg
- Country of Origin: China
Key Performance Advantages:
- Advanced Misalignment Support: Featuring a common spherical raceway in the outer ring, the 2309 series allows for the balls and inner ring to swivel freely. This automatically compensates for shaft deflections and mounting errors, ensuring smooth operation where perfect alignment is impossible.
- Increased Radial Load Capacity: As part of the 2300 series, this bearing is wider (36 mm) than the standard 2200 series, allowing for larger rolling elements that significantly increase radial load-carrying capabilities.
- C3 High-Speed Clearance: Engineered with C3 internal clearance to accommodate thermal expansion. This feature is vital for preventing internal stress and overheating in high-speed applications or heavy-duty cycles.
- Heavy-Duty Construction: With a weight of 1.25 kg, this bearing provides high structural rigidity and is built to withstand the demanding forces of industrial gearboxes, pumps, and fans.
- Robust Steel Cage: The high-quality pressed steel cage ensures precise spacing of the rolling elements, reducing friction and maximizing the service life of the bearing under continuous load.
Transparency Note: This product is manufactured under the RICH brand. The code 2309-C3 is used for identification purposes and does not imply affiliation with other manufacturers.
