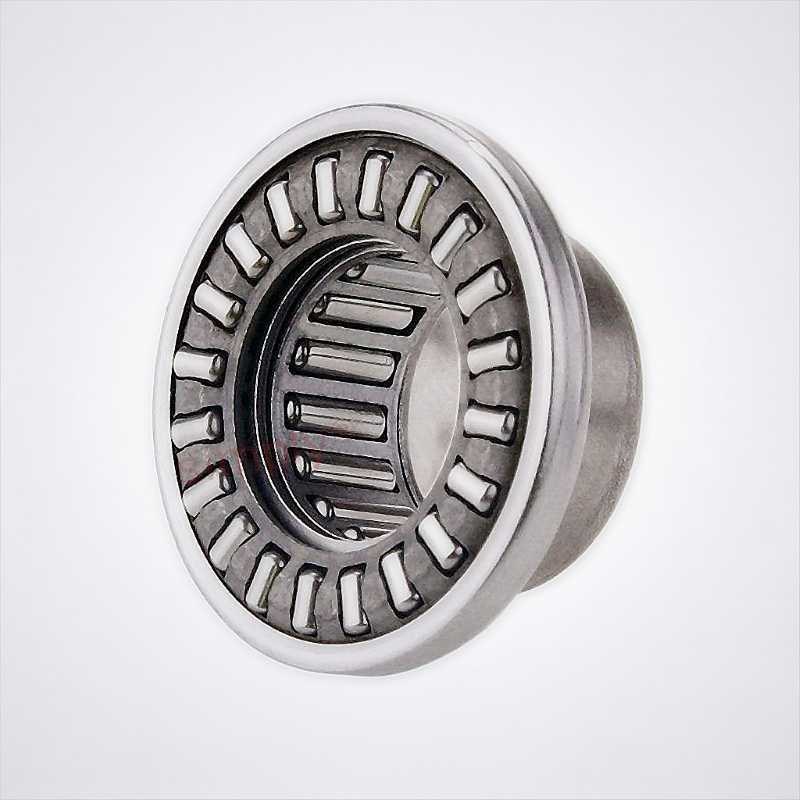

RAXF 714 RICH Combined Bearing – 14 × 20 × 14.2 mm
RAXF 714 RICH is a combined bearing designed for robust operational performance. Dimensional and structural characteristics correspond to the 14 × 20 × 14.2 mm specification.
Technical Specifications:
- Brand: RICH
- Type: Combined bearing
- Model: RAXF 714 RICH
- Inner Diameter (d): 14 mm
- Outer Diameter (D): 20 mm
- Total Width (H): 14.2 mm
- Outer Ring Width (C): 4.2 mm
- Flange Diameter (D1): 29.5 mm
- Weight: 0.027 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Integrated support for simultaneous radial and axial load transmission
- Structural Design: Combined needle roller and thrust assembly for precision guidance
- Spatial Efficiency: Optimized for compact mechanical envelopes requiring high rigidity
- Material Type: High-carbon chrome bearing steel
- Application Interface: Precision-engineered for industrial motion control and automated machinery
Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with any original equipment manufacturer. Country of origin: China.
