RAXF 718 RICH 18x24x18,2

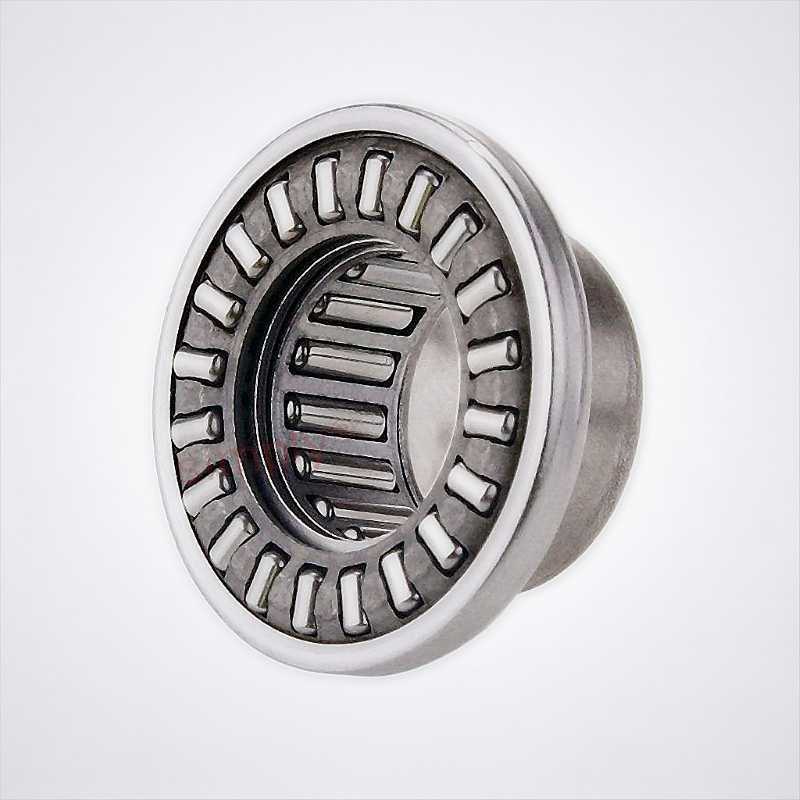

RAXF 718 RICH Combined Bearing – 18 × 24 × 18.2 mm

RAXF 718 RICH is a combined bearing designed for robust operational performance. Dimensional and structural characteristics correspond to the 18 × 24 × 18.2 mm specification.

Technical Specifications:

• Brand: RICH
• Type: Combined bearing
• Model: RAXF 718 RICH
• Inner Diameter (d): 18 mm
• Outer Diameter (D): 24 mm
• Total Width (H): 18.2 mm
• Outer Ring Width (C): 4.2 mm
• Flange Diameter (D1): 33.5 mm
• Weight: 0.032 kg
• Country of Origin: China

Performance Characteristics:

• Load Profile: Integrated support for simultaneous radial and axial load transmission
• Structural Design: Combined needle roller and thrust assembly for precision guidance
• Spatial Efficiency: Optimized for compact mechanical envelopes requiring high rigidity
• Material Type: High-carbon chrome bearing steel
• Application Interface: Precision-engineered for industrial motion control and automated machinery

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with any original equipment manufacturer. Country of origin: China.
