RAXF 720 RICH 20x26x18,2

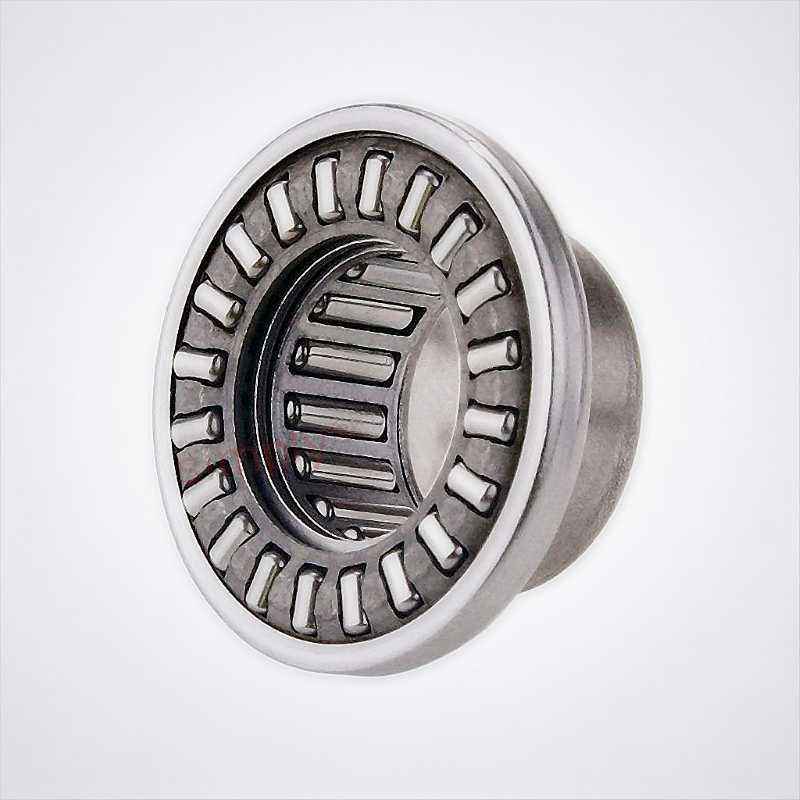

RAXF 720 RICH Combined Bearing – 20 × 26 × 18.2 mm

RAXF 720 RICH is a combined bearing designed for robust operational performance. Dimensional and structural characteristics correspond to the 20 × 26 × 18.2 mm specification.

Technical Specifications:

• Brand: RICH
• Type: Combined bearing
• Model: RAXF 720 RICH
• Inner Diameter (d): 20 mm
• Outer Diameter (D): 26 mm
• Total Width (H): 18.2 mm
• Outer Ring Width (C): 4.2 mm
• Flange Diameter (D1): 36.5 mm
• Weight: 0.04 kg
• Country of Origin: China

Performance Characteristics:

• Load Profile: Simultaneous management of radial and axial load components
• Structural Design: Integrated needle roller and thrust bearing unit
• Spatial Efficiency: Optimized for compact housing arrangements with high precision requirements
• Material Type: High-carbon chrome bearing steel
• Application Interface: Precision-engineered for industrial motion control and mechanical drives

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with any original equipment manufacturer. Country of origin: China.
