UFL003 RICH

Type: Pillow Block (Zinc Alloy Flange Unit)
Model: RICH UFL003
Bore Diameter: 17 mm
Brand: RICH
Origin: China
RICH
UFL003
€3.32
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

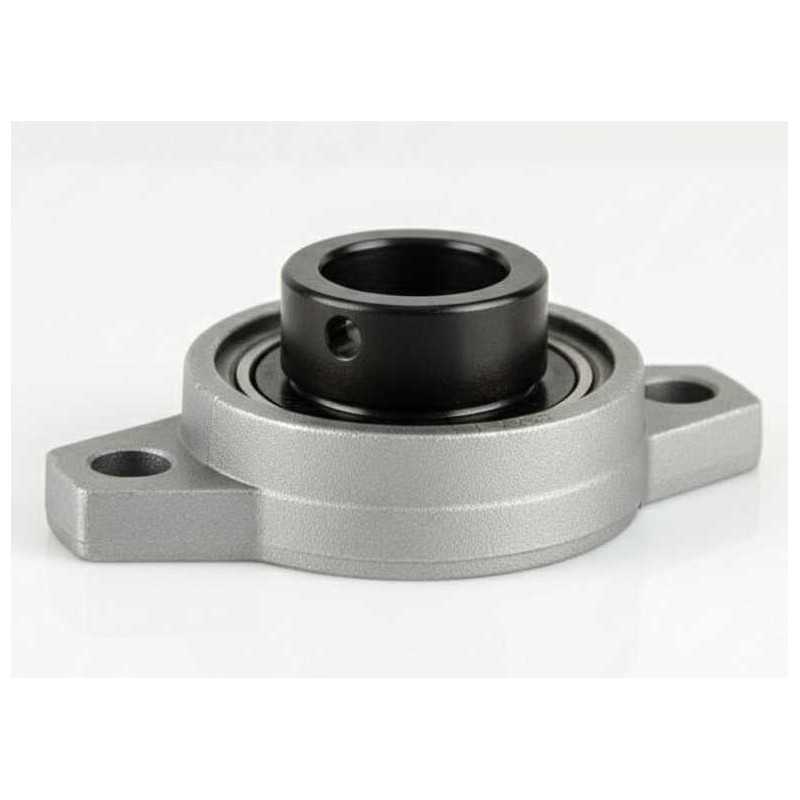

UFL003 RICH Pillow Block with Zinc Alloy Housing – 17 mm Bore

Technical Specifications:

  • Brand: RICH
  • Type: Pillow block with zinc alloy housing (Flange unit)
  • Model: UFL003 RICH
  • Bore Diameter (d): 17 mm
  • Overall Length (L): 71 mm
  • Mounting Hole Distance (J): 56 mm
  • Housing Width (A): 14 mm
  • Housing Base Width (A1): 7 mm
  • Total Width (L2): 46 mm
  • Mounting Hole Diameter (N): 7 mm
  • Housing Material: Zinc Alloy
  • Weight: 0.08 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Compact 2-bolt oval flange unit consisting of a chrome steel insert bearing pre-mounted in a lightweight zinc alloy housing.
  • Material Efficiency: Zinc alloy construction provides excellent corrosion resistance and a high strength-to-weight ratio, ideal for light-duty applications.
  • Mounting Versatility: Features a grub screw (set screw) inner ring for secure shaft locking and simplified installation on small machinery.
  • Maintenance: Pre-lubricated and sealed design to ensure reliable operation and protection against environmental contaminants.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references, if present, are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
17
