SS UK 210 RICH 45x90x34 SSUK210 RICH
zoom_out_map
SS UK 210 RICH 45x90x34 SSUK210 RICH

SS UK 210 RICH 45x90x34

Type: Stainless Steel Tapered Insert Bearing
Model: SS UK 210 RICH
Dimensions: 45 x 90 x 34 mm
Brand: RICH
Origin: China
RICH
SSUK210
€52.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

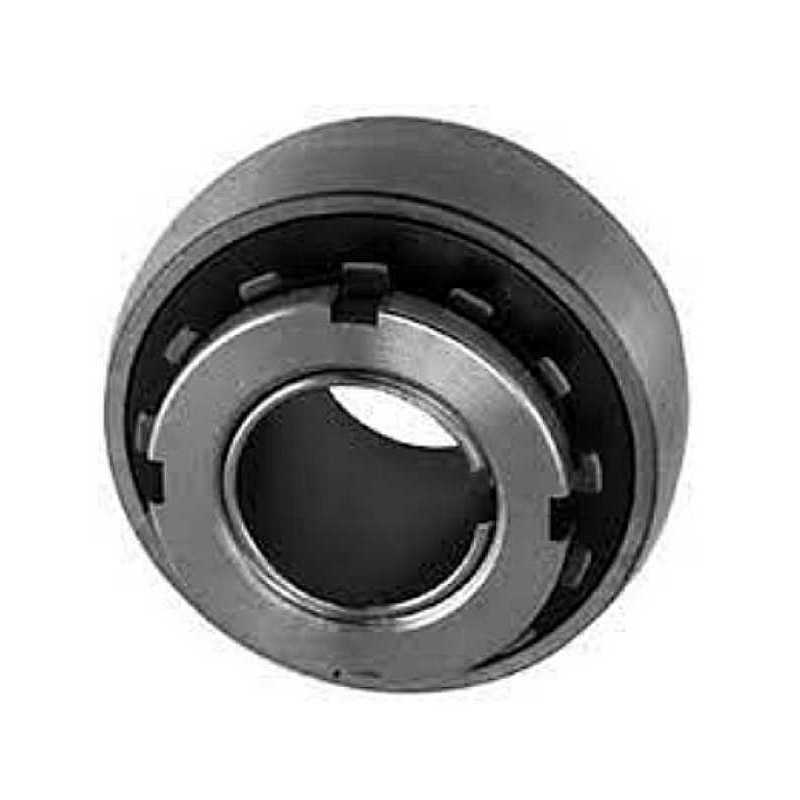

SS UK 210 RICH Stainless Steel Insert Ball Bearing with Tapered Bore – 45 × 90 × 34 mm

Technical Specifications:

  • Type: Insert ball bearing with conical hole
  • Brand: RICH
  • Model Designation: SS UK 210 RICH
  • Inner Diameter (d): 45 mm
  • Outer Diameter (D): 90 mm
  • Inner Ring Width: 34 mm
  • Outer Ring Width (C): 24 mm
  • Total Width (T): 55 mm
  • Material: Stainless steel
  • Rounded Outer Ring: Yes
  • Sealing: Double‑sided lip seal covered with a protective plate
  • Taper: 1:12
  • Weight: 0.563 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Insert bearing designed for use with adapter sleeves and conical shafts.
  • Material Type: Stainless steel construction suitable for environments requiring corrosion resistance.
  • Internal Geometry: Machined raceways supporting stable rotational performance.
  • Dimensional Format: 45 × 90 × 34 mm bearing profile with 55 mm overall width.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
45
Outer Diameter
90
Width
34
