SF207 RICH

Type: Stainless Steel Square Housing
Model: SF207 RICH
Dimensions: 117 x 92 x 34 mm
Brand: RICH
Origin: China
RICH
SF207
€14.27
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

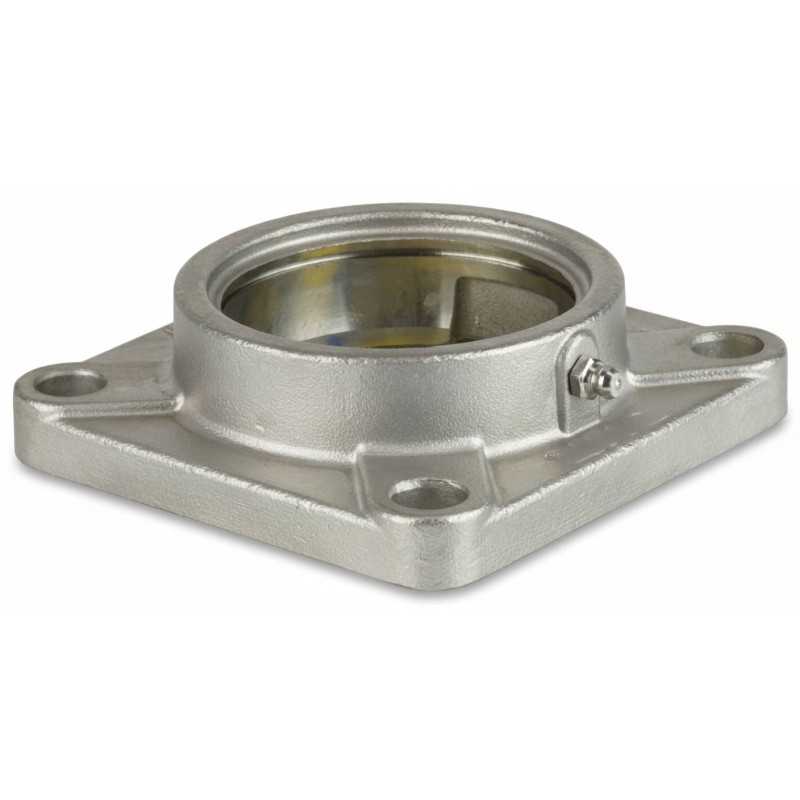

SF207 RICH Stainless Steel Square Flanged Housing – 117 × 92 × 34 mm

Technical Specifications:

  • Type: Stainless steel housing for insert ball bearing
  • Brand: RICH
  • Model Designation: SF207
  • Housing Length (L): 117 mm
  • Mounting Hole Distance (J): 92 mm
  • Total Height (A): 34 mm
  • Flange Thickness (A1): 15 mm
  • Mounting Bolt Hole (N): 14 mm
  • Material: Stainless steel
  • Weight: 0.706 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Four‑bolt square flange housing designed to accommodate standard insert bearings with a spherical outer ring.
  • Material Type: High‑grade stainless steel construction, engineered for maximum corrosion resistance in wash‑down and high‑humidity industrial sectors.
  • Internal Geometry: Precision‑machined housing seat ensuring accurate self‑alignment and structural stability under radial loads.
  • Dimensional Format: Compact 117 × 92 × 34 mm unit configuration suitable for 35 mm shaft inserts (207 series).

Transparency Note:

This housing is manufactured under the RICH brand. Dimensional values are provided solely for identification and do not imply compatibility with specific equipment or manufacturers.
