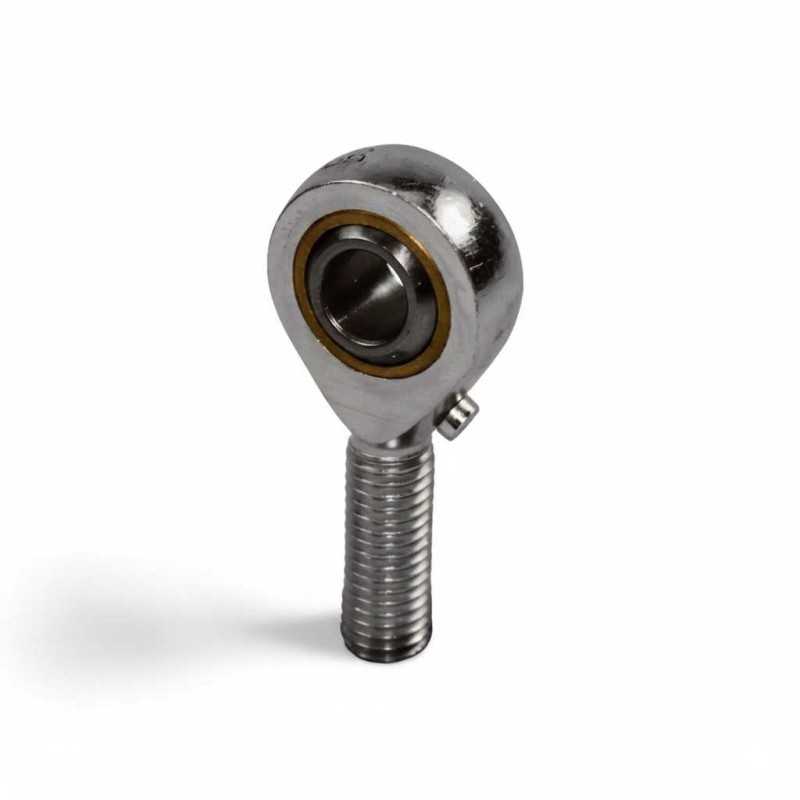

RGAS 20 RICH – Rod End | Thread Size: M20

RGAS 20 RICH – Rod End – 20 x 50 x 78 mm

Technical Specifications:

• Type: Rod end with male thread
• Brand: RICH
• Model Designation: RGAS 20
• Inner Diameter (d): 20 mm
• Outer Diameter (A): 50 mm
• Height to Axis (F): 78 mm
• Thread Size: M20
• Thread Length (GL): 47 mm
• Outer Ring Width (C): 18 mm
• Friction Pair: Steel/Bronze
• Housing Material: Carbon construction steel (C22 / AISI 1020)
• Dimensional Series: K
• Weight: 0.355 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing manufactured from AISI 1020 carbon construction steel with a zinc-plated surface finish.
• Sliding Configuration: Internal assembly featuring a bronze insert for the sliding contact surface.
• Friction Interface: Steel on bronze sliding contact pair designed for articulation under mechanical loads.
• Dimensional Format: Technical profile compliant with dimensional series K standards for mechanical linkage integration.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
