DC2222 RICH 22,22x38,885x10

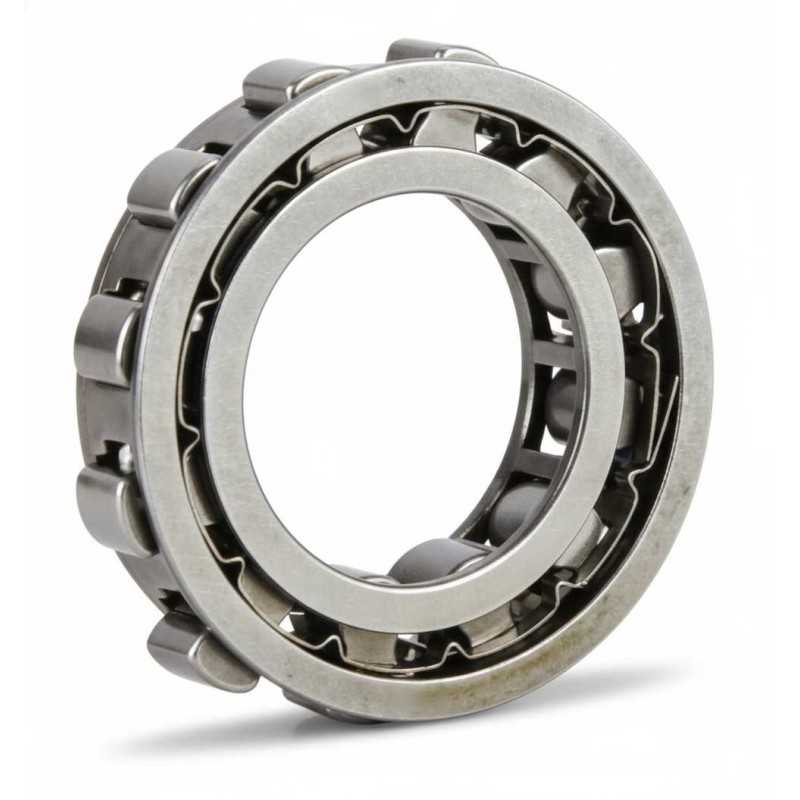

DC2222 RICH – Freewheel Clutch with Cage – 22.225 x 38.885 x 10 mm

Technical Specifications:

• Type: Freewheel clutch with cage
• Brand: RICH
• Model Designation: DC2222
• Inner Diameter (d): 22.225 mm
• Outer Diameter (D): 38.885 mm
• Width (B): 10 mm
• Dimensions: 22.225 x 38.885 x 10 mm
• Weight: 0.094 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Sprag-type freewheel clutch configuration featuring a double-cage design for rolling element retention.
• Directional Control: Mechanical system designed for unidirectional torque transmission, overrunning, and backstopping.
• Internal Geometry: Profiled sprags maintained within a metallic cage assembly for precise engagement and disengagement.
• Dimensional Format: 22.225 x 38.885 x 10 mm technical profile for integration between concentric shaft and housing raceways.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
