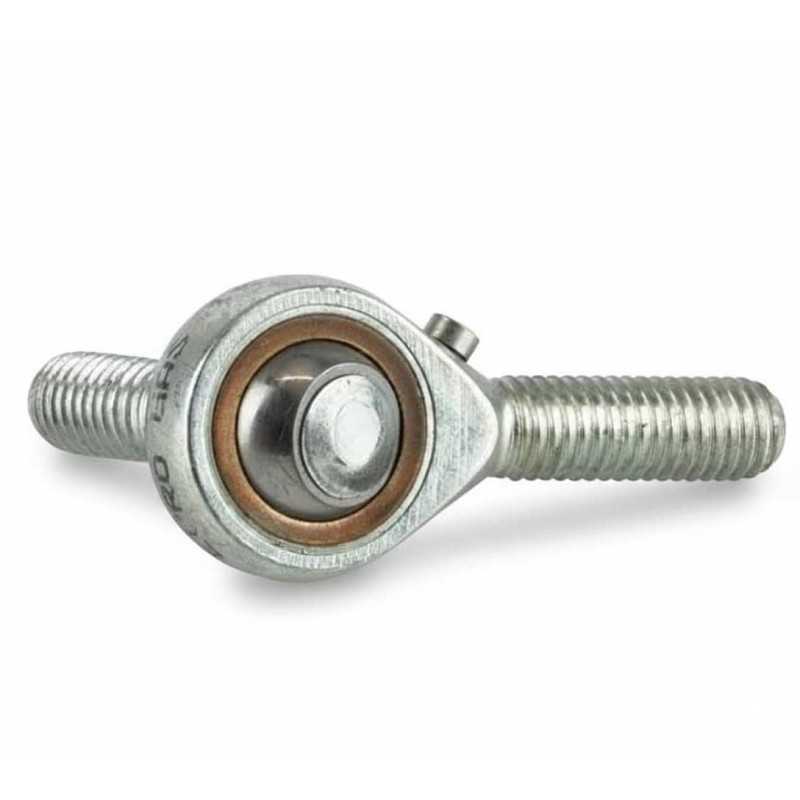

RGAS 10 BO M10 RICH – Rod End | Thread Size: M10 GAS10BOM10 RICH

RGAS 10 BO M10 RICH – Rod End | Thread Size: M10

Type: Rod End with Male Thread (Regreasable)
Model: RGAS 10 BO M10 RICH
Dimensions: 10 mm Bore x 48 mm Height
Material: Zinc Plated Steel/Bronze
Brand: RICH
Origin: China
RICH
GAS10BOM10
€11.24
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGAS 10 BO M10 RICH – Rod End – 10 x 28 x 48 mm

Technical Specifications:

  • Type: Rod end with male thread (Regreasable configuration)
  • Brand: RICH
  • Model Designation: RGAS 10 BO M10
  • Inner Diameter (d): 10 mm
  • Outer Diameter (A): 28 mm
  • Height to Axis (F): 48 mm
  • Thread Size: M10
  • Thread Length (GL): 28 mm
  • Outer Ring Width (C): 10.5 mm
  • Friction Pair: Steel/Bronze
  • Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
  • Dimensional Series: K
  • Dynamic Load Rating: 10,000 N
  • Weight: 0.025 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Male-threaded rod end housing manufactured from free-cutting steel with a protective zinc-plated surface finish.
  • Lubrication Feature: Housing assembly equipped with an integrated grease nipple for re-lubrication of the internal sliding contact area.
  • Sliding Configuration: Internal components utilizing a steel on bronze friction pair designed for articulation under dynamic load.
  • Dimensional Format: Technical profile compliant with dimensional series K standards for mechanical linkage integration.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
