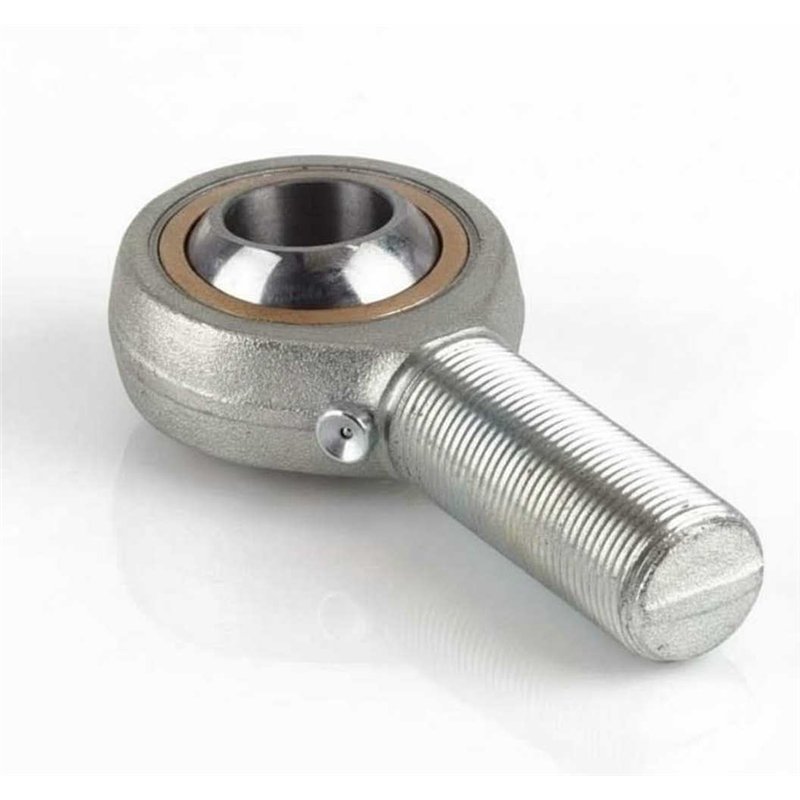

RGAS 30 RICH – Rod End | Thread Size: M30 GAS30 RICH

RGAS 30 RICH – Rod End | Thread Size: M30

Type: Rod End with Male Thread (Regreasable)
Model: RGAS 30 RICH
Dimensions: 30 mm Bore x 110 mm Height
Material: Zinc Plated Steel/Bronze
Brand: RICH
Origin: China
RICH
GAS30
€39.27
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGAS 30 RICH – Rod End – 30 × 70 × 110 mm

Technical Specifications:

  • Type: Rod end with male thread (regreasable configuration)
  • Brand: RICH
  • Model Designation: RGAS 30
  • Inner Diameter (d): 30 mm
  • Outer Diameter (A): 70 mm
  • Height to Axis (F): 110 mm
  • Thread Size: M30
  • Thread Length (GL): 71 mm
  • Outer Ring Width (C): 25 mm
  • Friction Pair: Steel/Bronze
  • Housing Material: Carbon construction steel (C22 / AISI 1020)
  • Dimensional Series: K
  • Weight: 1.043 kg
  • Country of Origin: China

Construction Features:

  • Housing: Carbon construction steel body with male-threaded shank and zinc-plated surface treatment.
  • Lubrication Feature: Housing assembly equipped with an integrated grease nipple for periodic re-lubrication of the internal contact surfaces.
  • Sliding Configuration: Internal components incorporating a steel-on-bronze friction pair arranged for articulated movement.
  • Dimensional Format: 30 × 70 × 110 mm configuration consistent with standardized geometry for series K rod ends.

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
Category
Rod End
