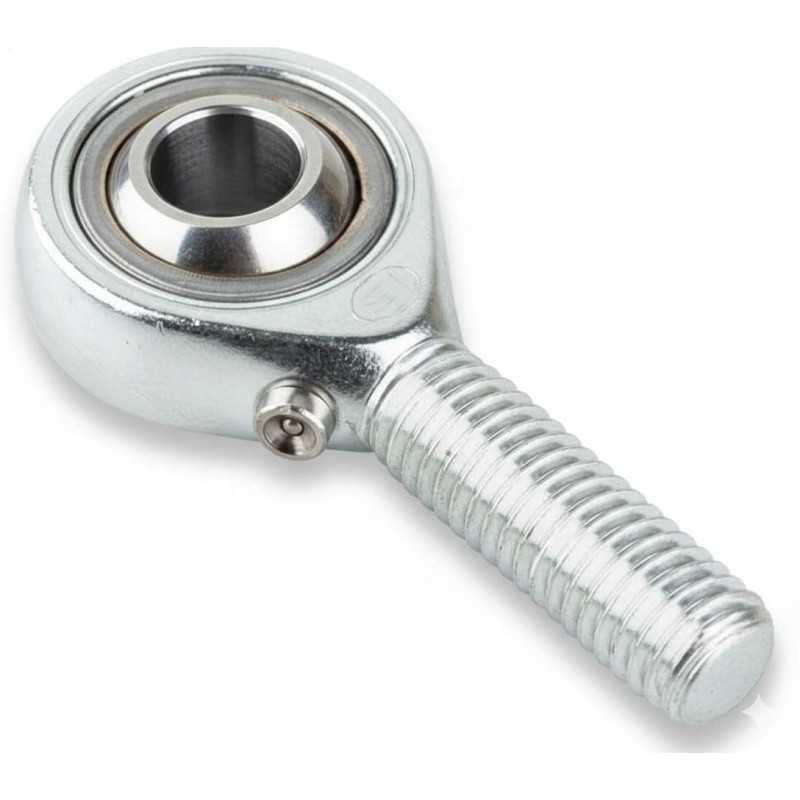

RPOS 10 RICH – Rod End | Thread Size: M10

RPOS 10 RICH – Rod End – 10 x 26 x 48 mm

Technical Specifications:

• Type: Rod end with male thread (External, right-hand)
• Brand: RICH
• Model Designation: RPOS 10
• Inner Diameter (d): 10 mm
• Outer Diameter (A): 26 mm
• Height to Axis (F): 48 mm
• Total Height (L): 61 mm
• Thread Size: M10 (Male, Right)
• Thread Length (GL): 29 mm
• Outer Ring Width (C): 10.5 mm
• Inner Ring Width: 14 mm
• Friction Pair: Chrome Steel/Steel
• Weight: 0.054 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing featuring an external right-hand thread configuration for mechanical connection.
• Sliding Configuration: Internal assembly incorporating a chrome steel on steel friction pair arranged for articulated movement.
• Lubrication Feature: Construction allows for maintenance and re-lubrication of the internal contact surfaces to support operational longevity.
• Dimensional Format: Technical profile compliant with standardized geometry for RPOS series rod ends.

Transparency Note:

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
