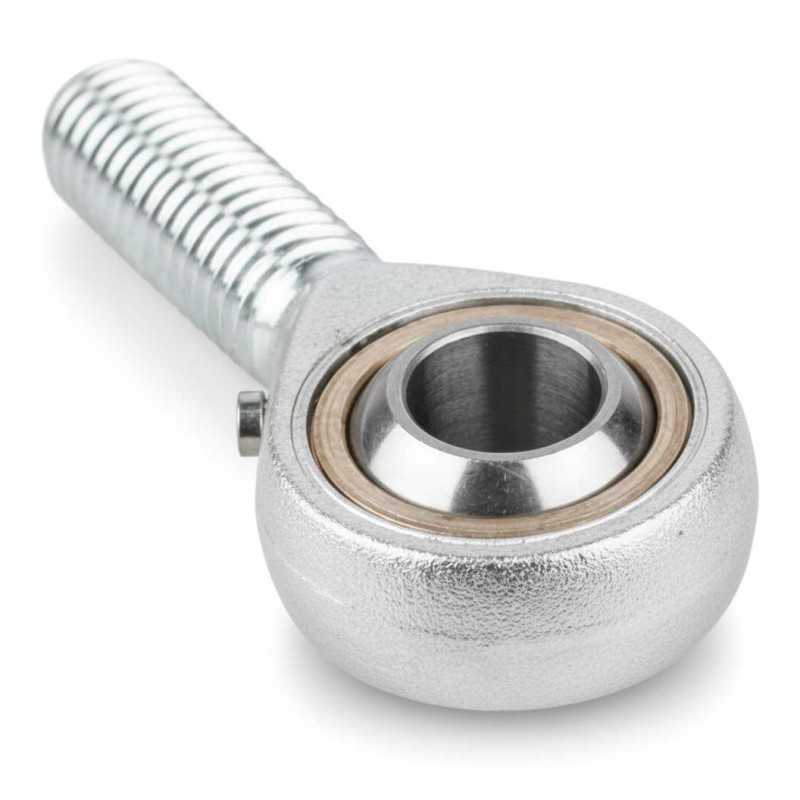

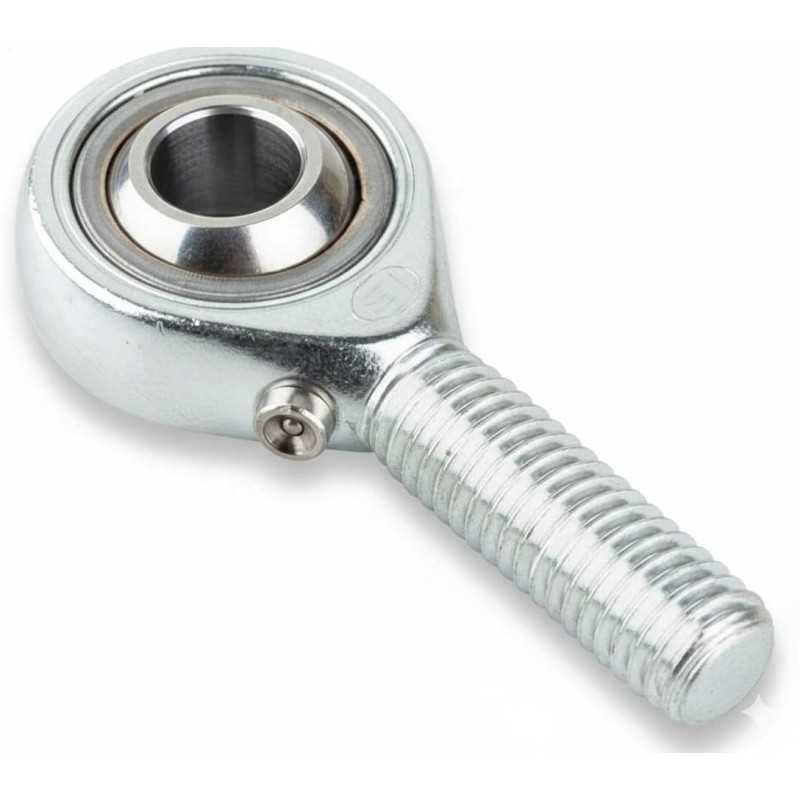

RPOSL 14 RICH – Rod End | Thread Size: M14

RPOSL 14 RICH – Rod End – 14 x 34 x 60 mm

Technical Specifications:

• Type: Rod end with male thread (External, left-hand)
• Brand: RICH
• Model Designation: RPOSL 14
• Inner Diameter (d): 14 mm
• Outer Diameter (A): 34 mm
• Height to Axis (F): 60 mm
• Total Height (L): 77 mm
• Thread Size: M14 (Male, Left)
• Thread Length (GL): 36 mm
• Outer Ring Width (C): 13.5 mm
• Inner Ring Width: 19 mm
• Friction Pair: Steel/Brass
• Weight: 0.122 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing featuring an external left-hand thread configuration for mechanical assembly.
• Sliding Configuration: Internal assembly utilizing a steel on brass friction pair arranged for articulated movement.
• Lubrication Feature: Design incorporates a regreasable interface to maintain operational efficiency of the sliding contact surfaces.
• Dimensional Format: Technical profile compliant with standardized geometry for RPOSL series rod ends.

Transparency Note:

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
