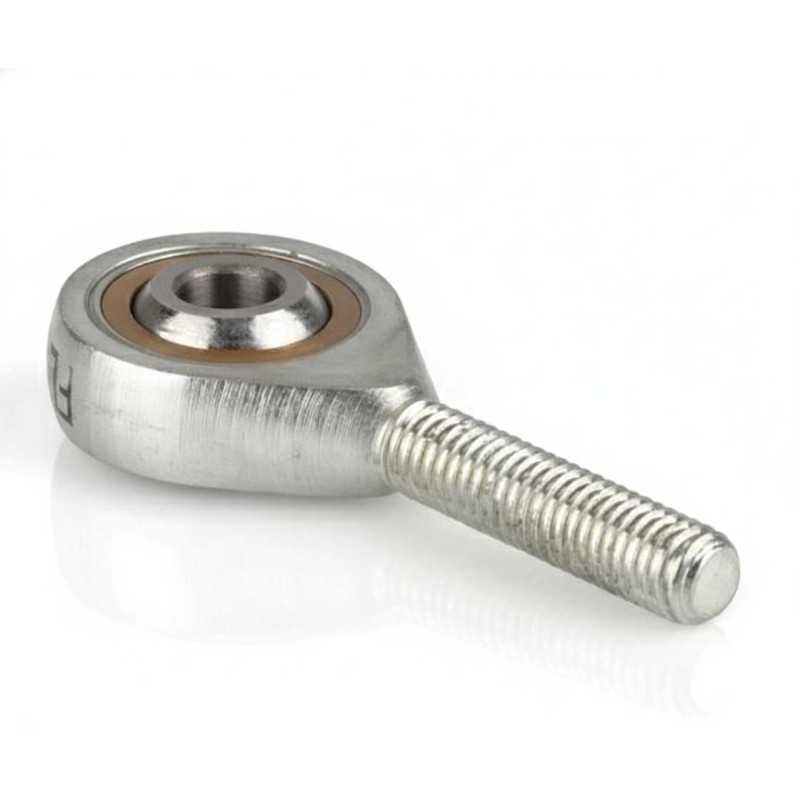

RGAS 5 RICH – Rod End | Thread Size M5 GAS5 RICH

RGAS 5 RICH – Rod End | Thread Size M5

Type: Rod End with Male Thread (Regreasable)
Model: RGAS 5 RICH
Dimensions: 5 mm Bore x 33 mm Height
Material: Zinc Plated Steel/Bronze
Brand: RICH
Origin: China
RICH
GAS5
€5.98
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGAS 5 RICH – Rod End – 5 x 18 x 33 mm

Technical Specifications:

  • Type: Rod end with male thread (Regreasable configuration)
  • Brand: RICH
  • Model Designation: RGAS 5
  • Inner Diameter (d): 5 mm
  • Outer Diameter (A): 18 mm
  • Height to Axis (F): 33 mm
  • Thread Size: M5
  • Thread Length (GL): 19 mm
  • Outer Ring Width (C): 6 mm
  • Inner Ring Width: 8 mm
  • Friction Pair: Steel/Bronze
  • Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
  • Dimensional Series: K
  • Weight: 0.016 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Male-threaded rod end housing manufactured from free-cutting steel with a zinc-plated surface finish.
  • Lubrication Feature: Housing assembly equipped with an integrated grease nipple for re-lubrication of the internal surfaces.
  • Sliding Configuration: Internal components utilizing a steel on bronze friction pair arranged for articulated movement.
  • Dimensional Format: Technical profile compliant with dimensional series K standards.

Transparency Note:

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
5
Category
Rod End
