RGLRSW 16 S RICH 16x38x21 | Stainless Steel

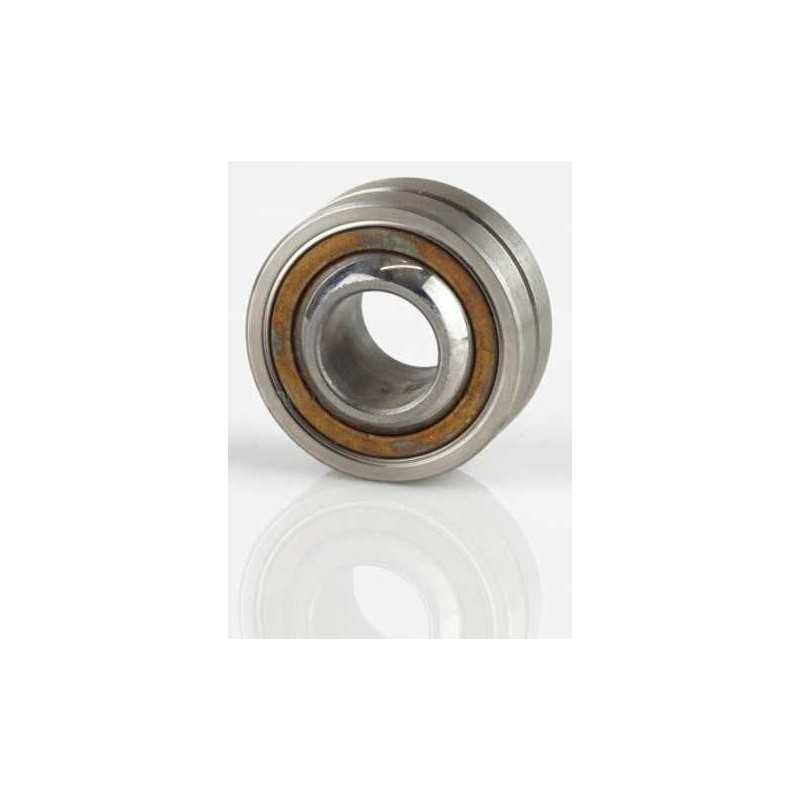

RGLRSW 16 S RICH – Stainless Steel Spherical Plain Bearing – 16 x 38 x 21 mm

Technical Specifications:

• Type: Radial spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: RGLRSW 16 S
• Inner Diameter (d): 16 mm
• Outer Diameter (D): 38 mm
• Inner Ring Width (B): 21 mm
• Outer Ring Width (C): 15 mm
• Friction Pair: Stainless steel / PTFE composite
• Inner Ring Material: Martensitic stainless steel (X46Cr13 / AISI 420C)
• Dimensional Series: K
• Weight: 0.116 kg
• Country of Origin: China

Performance Characteristics:

• Corrosion Resistance: Features stainless steel outer and inner rings, making it exceptionally suited for high-corrosion environments.
• Sliding Configuration: Maintenance-free operation provided by a high-performance stainless steel and PTFE composite friction pair, requiring no lubrication.
• Loading Profile: Specifically engineered to maintain integrity under high dynamic pressure and tension loads.
• Dimensional Format: Technical profile compliant with dimensional series K standards for heavy-duty industrial articulation.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
