RGLRSW 14 SS RICH 14x34x19 | Stainless Steel

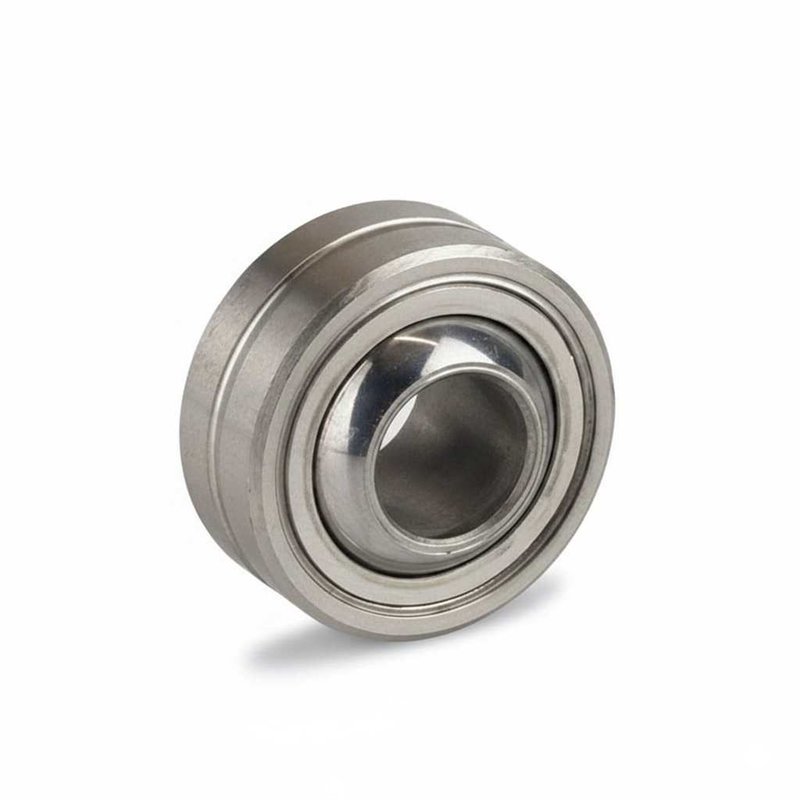

RGLRSW 14 SS RICH – Stainless Steel Spherical Plain Bearing – 14 x 34 x 19 mm

Technical Specifications:

• Type: Radial spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: RGLRSW 14 SS
• Inner Diameter (d): 14 mm
• Outer Diameter (D): 34 mm
• Inner Ring Width (B): 19 mm
• Outer Ring Width (C): 13.5 mm
• Sphere Diameter (dk): 25.4 mm
• Friction Pair: Stainless steel / PTFE composite
• Inner Ring Material: Martensitic stainless steel (X46Cr13 / AISI 420C)
• Dimensional Series: K
• Weight: 0.08 kg
• Country of Origin: China

Performance Characteristics:

• Material Integrity: Fabricated with a martensitic stainless steel inner ring, offering superior protection against oxidation and chemical wear.
• Sliding Configuration: Maintenance-free operation ensured by a stainless steel on PTFE composite friction pair, requiring no supplemental lubrication.
• Operational Capability: Specifically designed to withstand high dynamic pressure and tension loads within corrosive or aggressive environments.
• Dimensional Format: Technical profile compliant with dimensional series K standards for precision mechanical articulation.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
