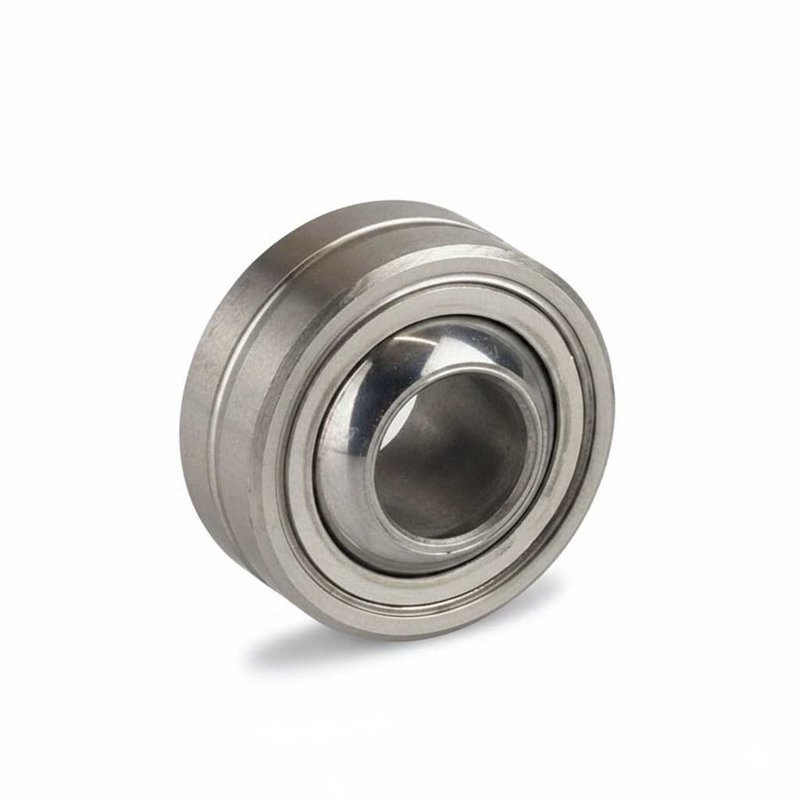

RGLRSW 8 SS RICH 8x22x12 | Stainless Steel

RGLRSW 8 SS RICH – Stainless Steel Spherical Plain Bearing – 8 x 22 x 12 mm

Technical Specifications:

• Type: Radial spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: RGLRSW 8 SS
• Inner Diameter (d): 8 mm
• Outer Diameter (D): 22 mm
• Inner Ring Width (B): 12 mm
• Outer Ring Width (C): 9 mm
• Sphere Diameter (dk): 15.87 mm
• Friction Pair: Stainless steel / PTFE composite
• Inner Ring Material: Martensitic stainless steel (X46Cr13 / AISI 420C)
• Dimensional Series: K
• Weight: 0.026 kg
• Country of Origin: China

Performance Characteristics:

• Corrosion Resistance: Manufactured using martensitic stainless steel to provide high durability and reliability in corrosive or humid environments.
• Sliding Configuration: Maintenance-free technical design featuring a stainless steel on PTFE composite friction pair, eliminating the need for periodic lubrication.
• Operational Capability: Engineered to support high dynamic pressure and tension loads while ensuring consistent articulated performance.
• Dimensional Format: Technical profile compliant with dimensional series K standards for industrial pivot and mechanical linkage systems.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
