RGLRSW 25 SS RICH 25x56x31 | Stainless Steel

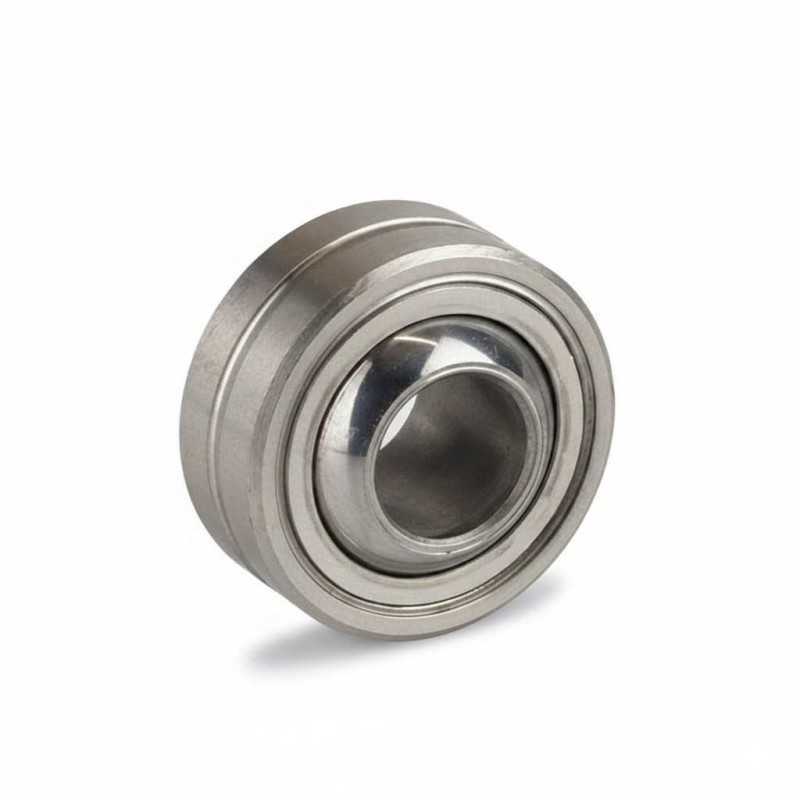

RGLRSW 25 SS RICH – Stainless Steel Spherical Plain Bearing – 25 x 56 x 31 mm

Technical Specifications:

• Type: Radial spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: RGLRSW 25 SS
• Inner Diameter (d): 25 mm
• Outer Diameter (D): 56 mm
• Inner Ring Width (B): 31 mm
• Outer Ring Width (C): 22 mm
• Sphere Diameter (dk): 42.86 mm
• Friction Pair: Stainless steel / PTFE composite
• Inner Ring Material: Martensitic stainless steel (X46Cr13 / AISI 420C)
• Insert Material: Stainless steel (AISI 316Ti / 1.4571) with PTFE
• Dimensional Series: K
• Weight: 0.375 kg
• Country of Origin: China

Performance Characteristics:

• Material Integrity: Engineered with a martensitic stainless steel inner ring and a high-grade AISI 316Ti stainless steel insert for maximum resistance to chemical corrosion and oxidation.
• Sliding Configuration: Maintenance-free operation utilizing a stainless steel and PTFE composite friction pair, eliminating the requirement for manual lubrication.
• Operational Capability: Specifically designed for heavy-duty applications requiring high dynamic pressure and tension load handling in aggressive environments.
• Dimensional Format: Technical profile compliant with dimensional series K standards for industrial articulation and mechanical pivots.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
