RGLRSW 6 SS RICH 6x18x9 | Stainless Steel

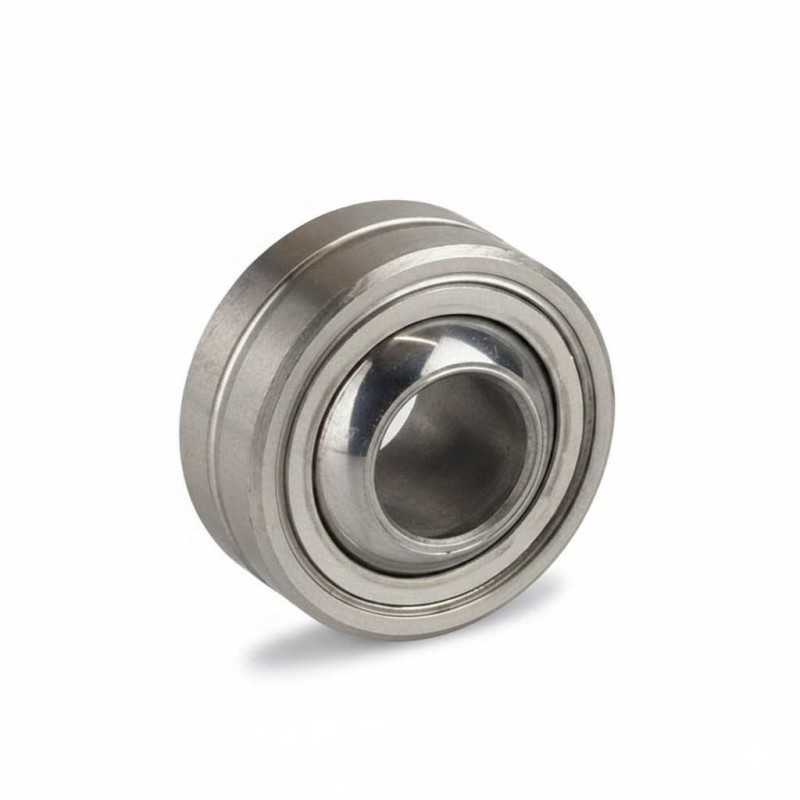

RGLRSW 6 SS RICH – Stainless Steel Spherical Plain Bearing – 6 x 18 x 9 mm

Technical Specifications:

• Type: Radial spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: RGLRSW 6 SS
• Inner Diameter (d): 6 mm
• Outer Diameter (D): 18 mm
• Inner Ring Width (B): 9 mm
• Outer Ring Width (C): 6.75 mm
• Sphere Diameter (dk): 12.7 mm
• Friction Pair: Stainless steel / PTFE composite
• Inner Ring Material: Martensitic stainless steel (X46Cr13 / AISI 420C)
• Dimensional Series: K
• Weight: 0.012 kg
• Country of Origin: China

Performance Characteristics:

• Material Integrity: Manufactured with a martensitic stainless steel inner ring to ensure high-level resistance to oxidation and chemical degradation.
• Sliding Configuration: Maintenance-free technical design utilizing a stainless steel on PTFE composite friction pair, requiring no supplemental lubrication.
• Operational Capability: Specifically engineered to maintain structural reliability under higher dynamic pressure and tension loads within corrosive environments.
• Dimensional Format: Technical profile compliant with dimensional series K standards for industrial articulation and mechanical linkage systems.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
