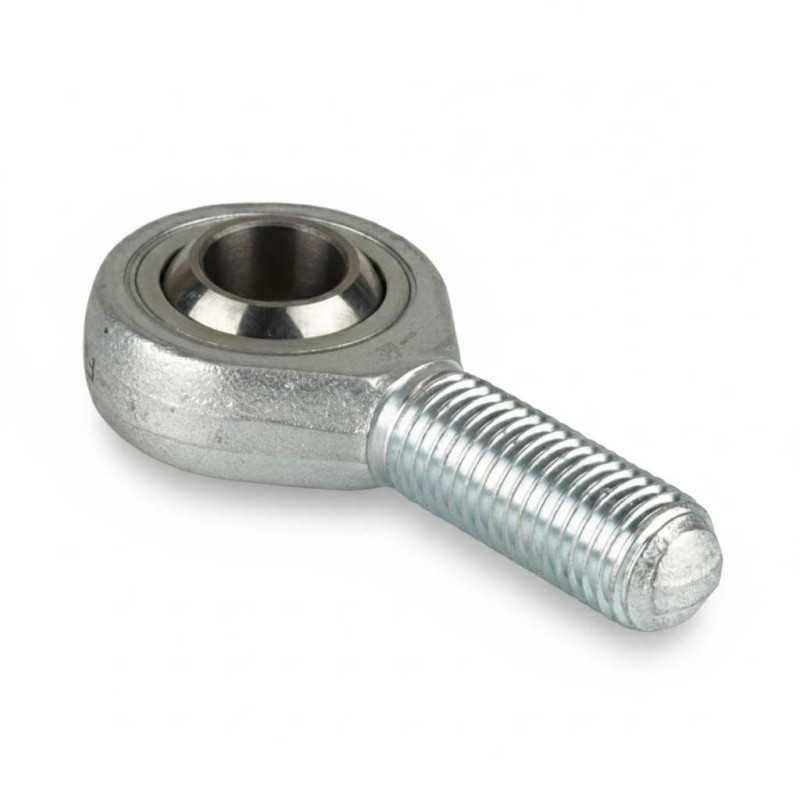

RGALSW 16 RICH – Rod End | Thread Size: M16

RGALSW 16 RICH – Rod End – 16 x 42 x 66 mm

Technical Specifications:

• Type: Rod end with male thread (Maintenance-free)
• Brand: RICH
• Model Designation: RGALSW 16
• Inner Diameter (d): 16 mm
• Outer Diameter (A): 42 mm
• Height to Axis (F): 66 mm
• Thread Size: M16
• Thread Length (GL): 40 mm
• Outer Ring Width (C): 15 mm
• Inner Ring Width: 21 mm
• Friction Pair: Steel/PTFE
• Housing Material: Carbon construction steel (C22 / AISI 1020)
• Dimensional Series: K
• Weight: 0.205 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing manufactured from AISI 1020 carbon construction steel with a protective zinc-plated surface finish.
• Sliding Configuration: Maintenance-free technical design featuring a steel-on-PTFE friction pair, specifically engineered for applications involving dynamic loads.
• Lubrication: Self-lubricating PTFE liner eliminates the requirement for supplemental grease or manual maintenance throughout the service life.
• Dimensional Format: Technical profile compliant with dimensional series K standards for industrial articulation and mechanical pivots.

Transparency Note:

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
