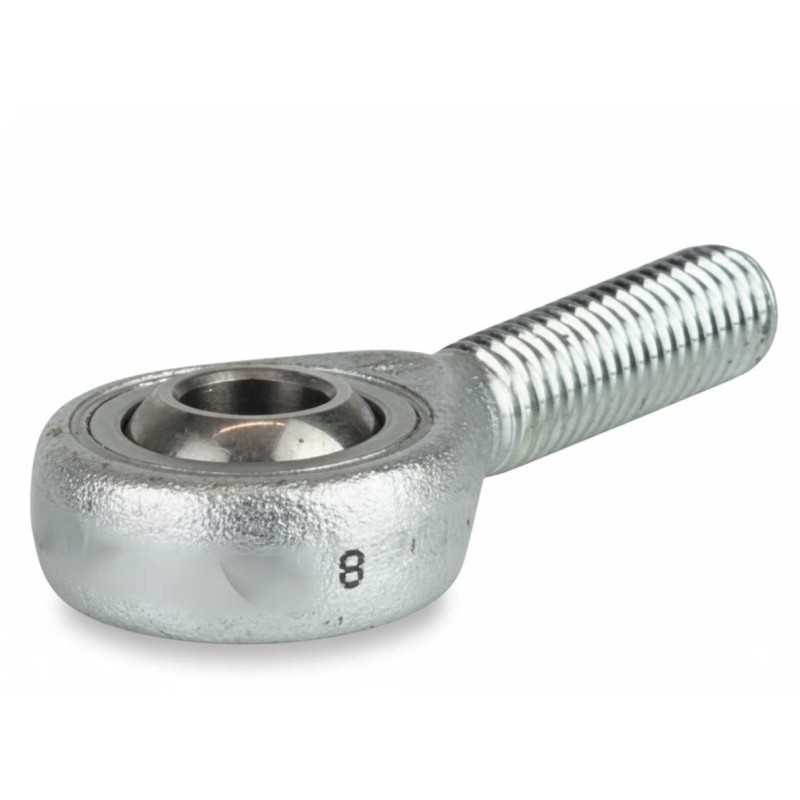

RGALXSW 8 RICH – Rod End – Thread Size: M8 GALXSW8 RICH
zoom_out_map
RGALXSW 8 RICH – Rod End – Thread Size: M8 GALXSW8 RICH

RGALXSW 8 RICH – Rod End – Thread Size: M8

Type: Rod End with Male Thread (Maintenance-Free)
Model: RGALXSW 8 RICH
Dimensions: 8 mm Bore x 42 mm Height
Material: Zinc Plated Alloy Steel / PTFE
Brand: RICH
Origin: China
RICH
GALXSW8
€9.12
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGALXSW 8 RICH – Rod End – 8 × 24 × 42 mm

Technical Specifications:

  • Type: Rod end with male thread (Maintenance-free)
  • Brand: RICH
  • Model Designation: RGALXSW 8
  • Inner Diameter (d): 8 mm
  • Outer Diameter (A): 24 mm
  • Height to Axis (F): 42 mm
  • Thread Size: M8
  • Thread Length (GL): 25 mm
  • Outer Ring Width (C): 9 mm
  • Inner Ring Width: 12 mm
  • Friction Pair: Steel / PTFE
  • Housing Material: Alloy steel (42CrMo4 / 1.7225 / AISI 4140)
  • Dimensional Series: K
  • Weight: 0.039 kg
  • Country of Origin: China

Construction Features:

  • Housing: Zinc-plated alloy steel (42CrMo4) body with integrated male thread.
  • Sliding Interface: Steel on PTFE composite friction pair.
  • Internal Seat: Maintenance-free spherical plain bearing with PTFE liner.
  • Dimensional Format: 8 × 24 × 42 mm configuration aligned with series K.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
8
Category
Rod End
