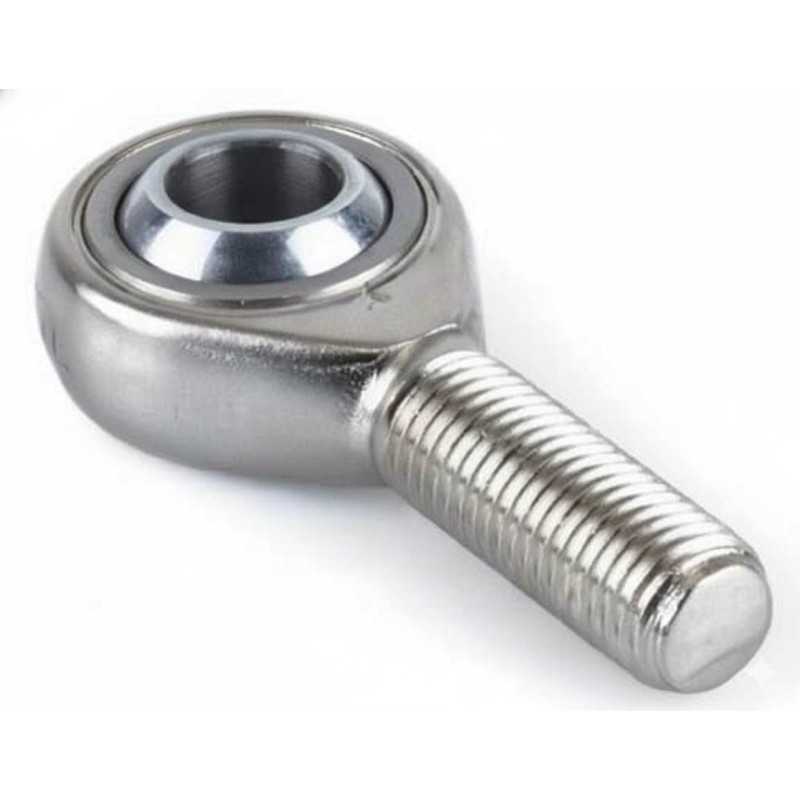

RGALXSW 12x1.5 MS RICH – Rod End – Thread: M12x1.5

RGALXSW 12x1.5 MS RICH – Male Thread Rod End Bearing M12x1.5 (12 × 32 × 54 mm)

The RGALXSW 12x1.5 MS RICH rod end bearing is a high-strength male thread spherical plain bearing designed for precision mechanical linkages and dynamic load applications.

With a fine thread M12x1.5 and a maintenance-free PTFE sliding surface, this rod end bearing ensures smooth operation, high wear resistance, and long service life without lubrication.

It is commonly used in industrial machinery, automation systems, hydraulic linkages, and applications where accurate movement and vibration resistance are required.

Technical Specifications

• Type: Male thread rod end bearing (maintenance-free)
• Model: RGALXSW 12x1.5 MS
• Inner Diameter (d): 12 mm
• Outer Diameter (A): 32 mm
• Height to Axis (F): 54 mm
• Thread Size: M12 x 1.5 (fine pitch)
• Thread Length (GL): 32 mm
• Outer Ring Width (C): 12 mm
• Inner Ring Width: 16 mm
• Friction Pair: Chrome steel / PTFE
• Housing Material: Alloy steel 42CrMo4 (AISI 4140 / 1.7225)
• Dimensional Series: K
• Weight: 0.095 kg
• Brand: RICH
• Origin: China

Key Features and Benefits

• Fine pitch thread (M12x1.5): allows precise adjustment and improved resistance to loosening under vibration.
• Maintenance-free design: PTFE liner eliminates the need for lubrication.
• High-strength housing: heat-treated alloy steel ensures durability under heavy loads.
• Smooth articulation: precision-ground chrome steel ball provides consistent movement.
• Wide application range: suitable for industrial, mechanical, and automation systems.

Transparency Note: This product is marketed under the RICH brand. Any reference to equivalent standards is for identification purposes only.
