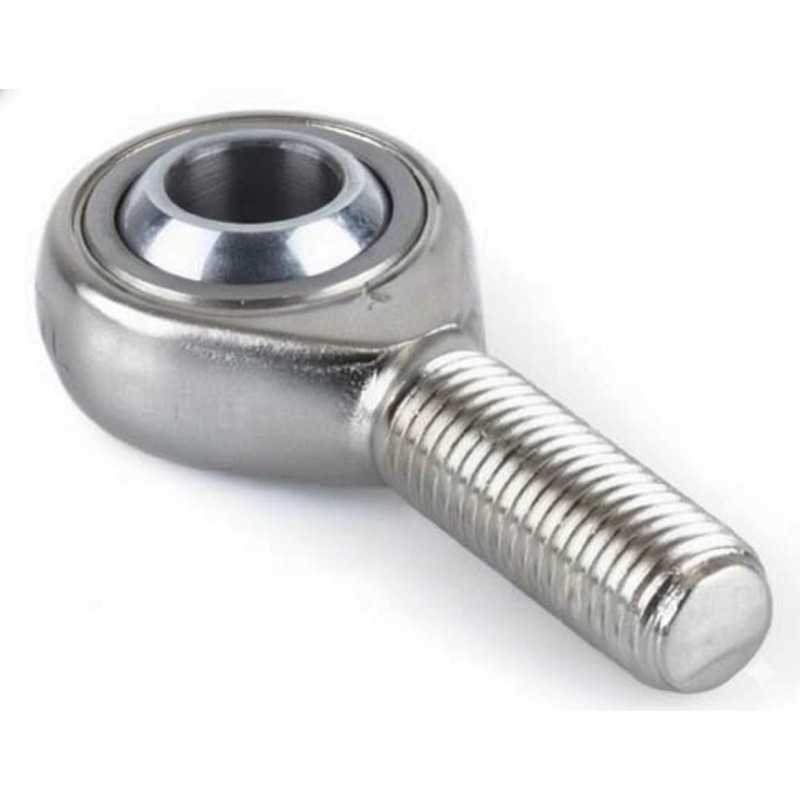

RGALXSW 12 RICH – Rod End – Thread Size: M12

RGALXSW 12 RICH – Rod End – 12 × 32 × 54 mm

Technical Specifications:

• Type: Rod end with male thread (Maintenance-free)
• Brand: RICH
• Model Designation: RGALXSW 12
• Inner Diameter (d): 12 mm
• Outer Diameter (A): 32 mm
• Height to Axis (F): 54 mm
• Thread Size: M12
• Thread Length (GL): 32 mm
• Outer Ring Width (C): 12 mm
• Inner Ring Width: 16 mm
• Friction Pair: Steel / PTFE
• Housing Material: Alloy steel (42CrMo4 / 1.7225 / AISI 4140)
• Dimensional Series: K
• Weight: 0.093 kg
• Country of Origin: China

Construction Features:

• Housing: Zinc-plated alloy steel (42CrMo4) body with integrated male thread.
• Sliding Interface: Steel on PTFE friction pair.
• Internal Configuration: Maintenance-free spherical plain bearing with integrated PTFE liner.
• Dimensional Format: 12 × 32 × 54 mm configuration aligned with series K.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
