SER205-16G RICH 25,4x52x34,9 SER205-16G RICH

SER205-16G RICH 25,4x52x34,9

Type: Ball Bearing with Flat Outer Ring (Insert Bearing)
Model: SER205-16G RICH
Dimensions: 25.4 x 52 x 34.9 mm
OE Reference: BROWNING MER-216 | DODGE INS-CC-100
Brand: RICH
Origin: China
RICH
SER205-16G
€5.01
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

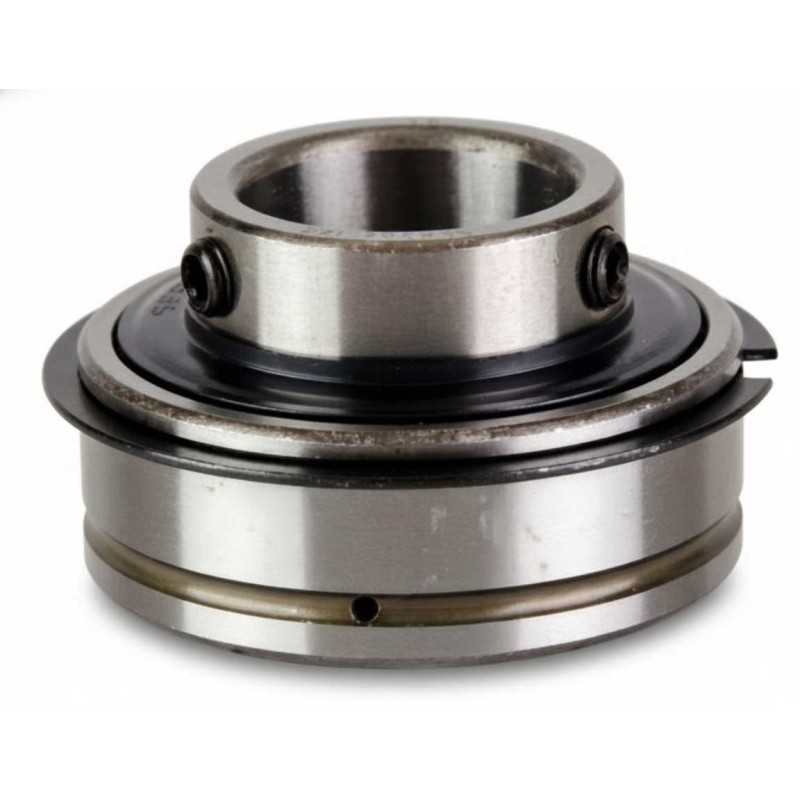

SER205-16G RICH – Ball Bearing with Cylindrical Outer Ring – 25.4 × 52 × 34.9 mm

Technical Specifications:

  • Type: Ball bearing with cylindrical (flat) outer ring
  • Brand: RICH
  • Model Designation: SER205-16G
  • Inner Diameter (d): 25.4 mm (1 inch)
  • Outer Diameter (D): 52 mm
  • Inner Ring Width (B): 34.9 mm
  • Outer Ring Width (C): 19.05 mm
  • Internal Clearance: CN (Normal clearance)
  • Sealing: Double-sided lip seal with protective plate
  • Outer Ring Profile: Cylindrical (Non-spherical)
  • Lubrication Feature: Groove with snap ring on outer ring (G)
  • OE Reference: DODGE INS-CC-100 (C=15mm reference) | BROWNING MER-216
  • Weight: 0.224 kg
  • Country of Origin: China

Construction Features:

  • Outer Ring: Cylindrical flat profile featuring a snap ring and lubrication groove.
  • Inner Ring: Extended width (34.9 mm) for enhanced shaft stability.
  • Sealing System: Integrated double-sided lip seals reinforced with metal cover plates.
  • Dimensional Format: 25.4 × 52 × 34.9 mm configuration for cylindrical housing inserts.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
25,4
Outer Diameter
52
Width
34,9
