SER206-18G RICH 28,575x62x38,1

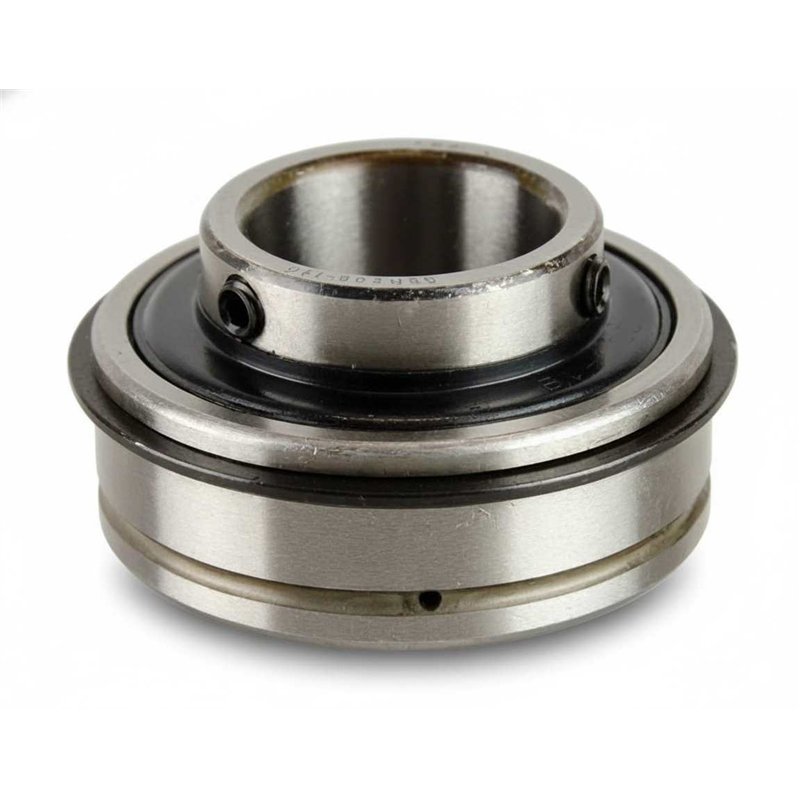

SER206-18G RICH – Ball Bearing with Cylindrical Outer Ring – 28.575 × 62 × 38.1 mm

Technical Specifications:

• Type: Ball bearing with cylindrical (flat) outer ring
• Brand: RICH
• Model Designation: SER206-18G
• Inner Diameter (d): 28.575 mm (1-1/8 inch)
• Outer Diameter (D): 62 mm
• Inner Ring Width (B): 38.1 mm
• Outer Ring Width (C): 22.22 mm
• Internal Clearance: CN (Normal clearance)
• Sealing: Double-sided lip seal with protective plate
• Outer Ring Profile: Cylindrical (Non-spherical)
• Lubrication Feature: Groove on outer ring with lubrication holes (G)
• Weight: 0.39 kg
• Country of Origin: China

Construction Features:

• Outer Ring: Cylindrical flat profile with integrated lubrication groove.
• Inner Ring: Extended inner ring width (38.1 mm) for shaft support.
• Sealing System: Multi-component setup featuring lip seals reinforced by metal plates on both sides.
• Dimensional Format: 28.575 × 62 × 38.1 mm configuration for insert bearing housings.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
