SER207-20 RICH 31,75x72x42,9 SER207-20 RICH
zoom_out_map
SER207-20 RICH 31,75x72x42,9 SER207-20 RICH

SER207-20 RICH 31,75x72x42,9

Type: Ball Bearing with Flat Outer Ring (Insert Bearing)
Model: SER207-20 RICH
Dimensions: 31.75 x 72 x 42.9 mm
OE Reference: BROWNING MER-220 | DODGE INS-CC-104
Brand: RICH
Origin: China
RICH
SER207-20
€6.01
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

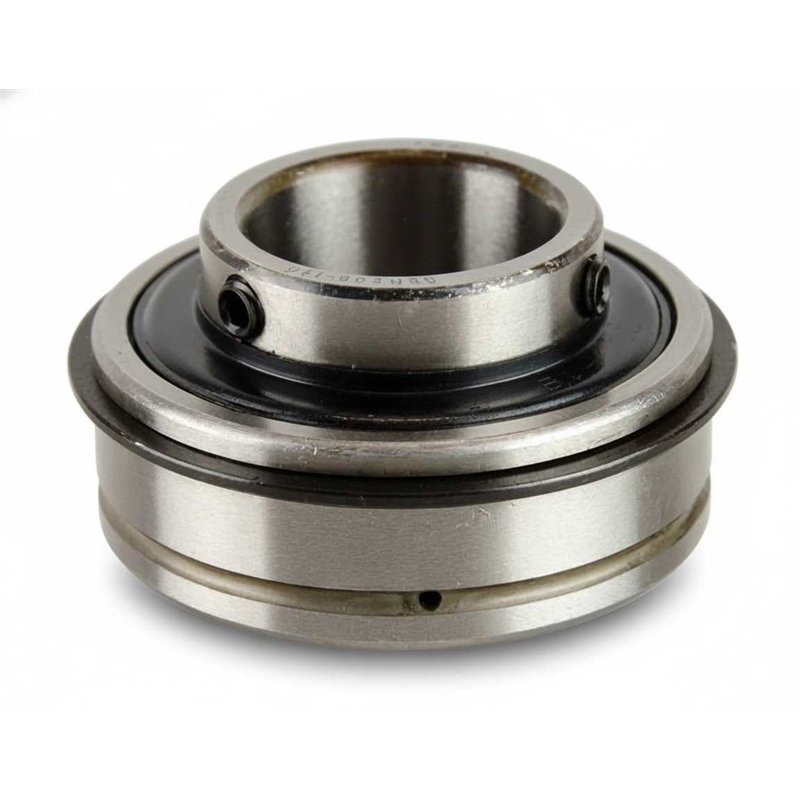

SER207-20 RICH – Ball Bearing with Cylindrical Outer Ring – 31.75 × 72 × 42.9 mm

Technical Specifications:

  • Type: Ball bearing with cylindrical (flat) outer ring
  • Brand: RICH
  • Model Designation: SER207-20
  • Inner Diameter (d): 31.75 mm (1-1/4 inch)
  • Outer Diameter (D): 72 mm
  • Inner Ring Width (B): 42.9 mm
  • Outer Ring Width (C): 23.813 mm
  • Internal Clearance: CN (Normal clearance)
  • Sealing: Double-sided lip seal with protective plate
  • Outer Ring Profile: Cylindrical (Non-spherical)
  • Lubrication Feature: Groove with snap ring on outer ring
  • OE Reference: DODGE INS-CC-104 (C=17mm reference) | BROWNING MER-220
  • Weight: 0.58 kg
  • Country of Origin: China

Construction Features:

  • Outer Ring: Cylindrical flat profile featuring a snap ring and lubrication groove.
  • Inner Ring: Extended width (42.9 mm) for improved shaft seating and stability.
  • Sealing System: Integrated double-sided lip seals reinforced with metal cover plates.
  • Dimensional Format: 31.75 × 72 × 42.9 mm configuration for cylindrical housing inserts.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
31,75
Outer Diameter
72
Width
42,9
