SER210-30G RICH 47,625x90x51,6

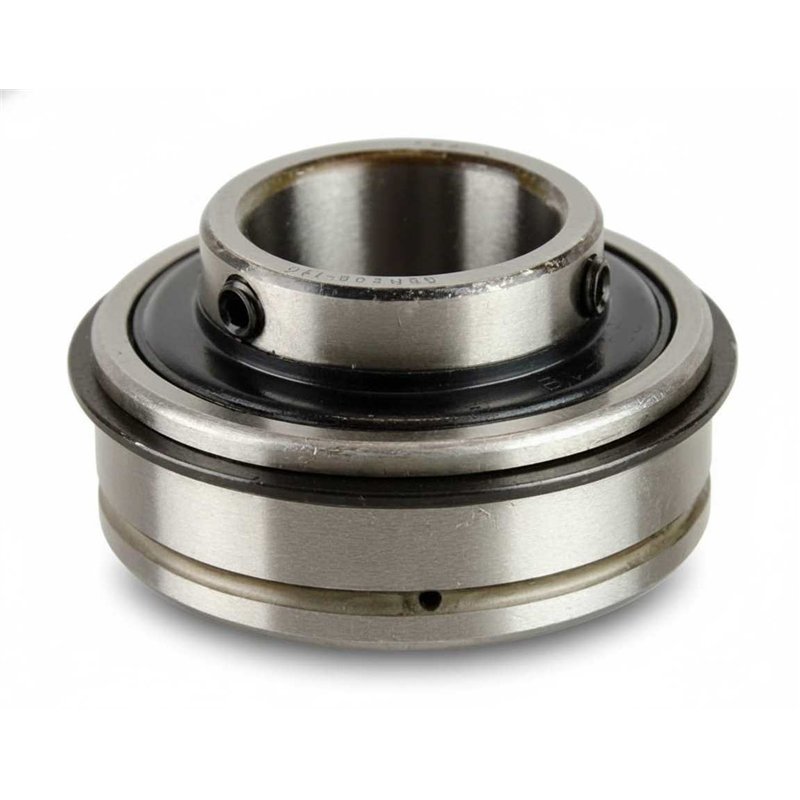

SER210-30G RICH – Ball Bearing with Cylindrical Outer Ring – 47.625 × 90 × 51.6 mm

Technical Specifications:

• Type: Ball bearing with cylindrical (flat) outer ring
• Brand: RICH
• Model Designation: SER210-30G
• Inner Diameter (d): 47.625 mm (1-7/8 inch)
• Outer Diameter (D): 90 mm
• Inner Ring Width (B): 51.6 mm
• Outer Ring Width (C): 28.57 mm
• Internal Clearance: CN (Normal clearance)
• Sealing: Double-sided non-contact shields
• Outer Ring Profile: Cylindrical (Non-spherical)
• Lubrication Feature: Groove with snap ring on outer ring (G)
• OE Reference: BROWNING MER-230
• Weight: 0.935 kg
• Country of Origin: China

Construction Features:

• Outer Ring: Cylindrical flat profile featuring a snap ring and integrated lubrication groove.
• Inner Ring: Extended width (51.6 mm) for axial shaft support.
• Sealing System: Non-contact metallic shields on both sides for contaminant protection.
• Dimensional Format: 47.625 × 90 × 51.6 mm configuration for cylindrical housing inserts.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
