SA207D1 RICH 35x72x38,9

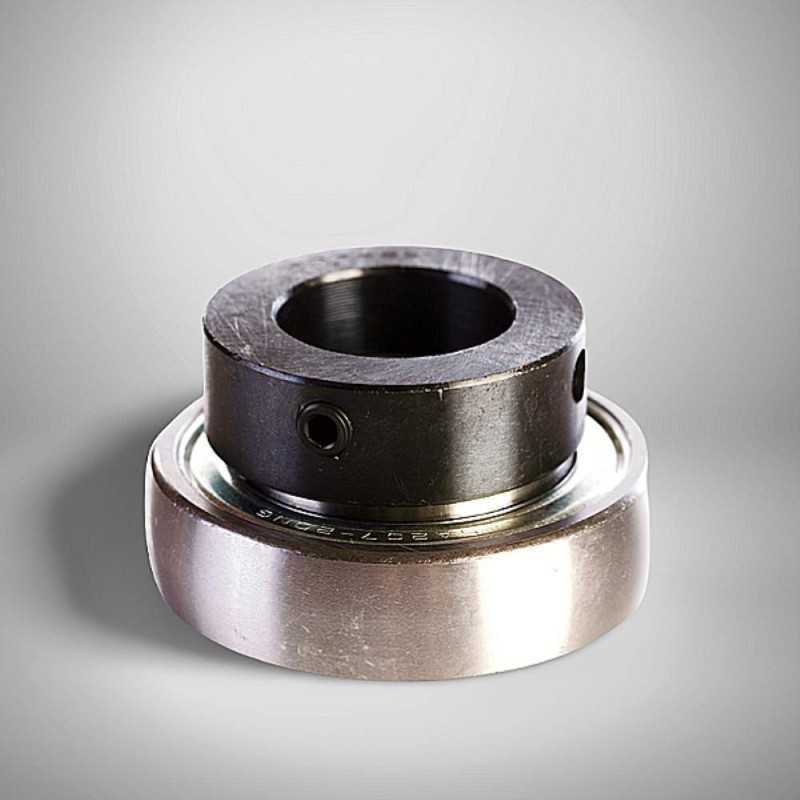

SA207D1 RICH – Insert Ball Bearing with Eccentric Locking Collar – 35 × 72 × 38.9 mm

Technical Specifications:

• Type: Insert ball bearing with eccentric locking collar
• Brand: RICH
• Model Designation: SA207D1
• Inner Diameter (d): 35 mm
• Outer Diameter (D): 72 mm
• Total Width (T): 38.9 mm
• Inner Ring Width (B1): 30.2 mm
• Outer Ring Width (C): 17 mm
• Outer Ring Profile: Spherical (Rounded)
• Sealing: Double-sided contact rubber seals (R-type)
• OE Reference: DODGE INS-SXV-35M (C=19mm reference)
• Weight: 0.45 kg
• Country of Origin: China

Construction Features:

• Locking Mechanism: Features an eccentric locking collar for secure and fast shaft attachment in unidirectional applications.
• Outer Ring Design: The spherical (rounded) outer ring allows for initial misalignment when mounted in a compatible housing.
• Sealing System: Equipped with high-performance contact rubber seals on both sides to prevent grease leakage and contaminant ingress.
• Dimensional Format: Standard 35 × 72 × 38.9 mm configuration designed for series 207 housings.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
