GE 20 RC NIRO RICH 25x42x2

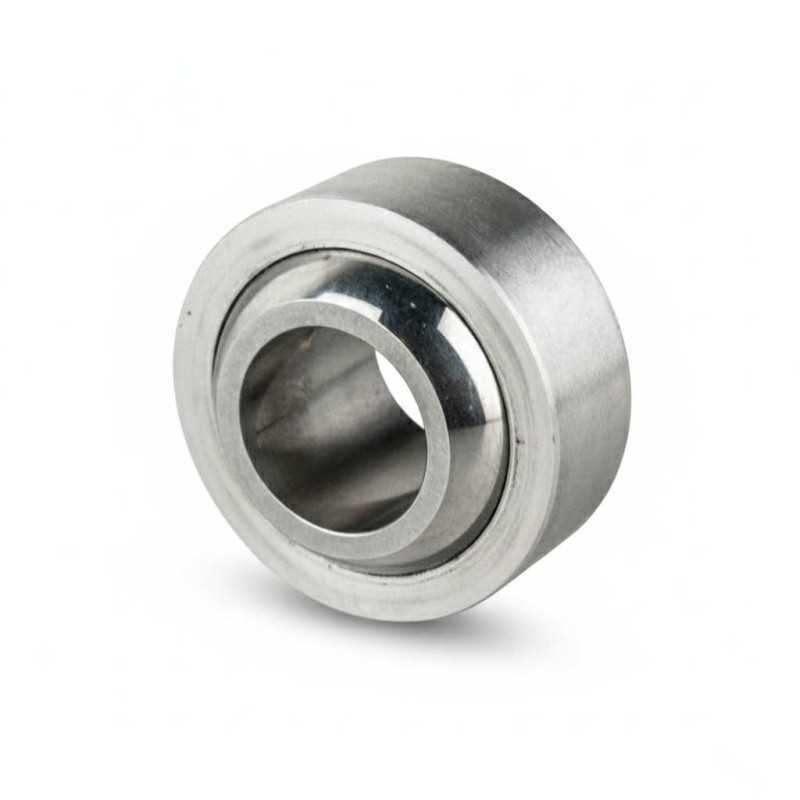

GE 20 RC NIRO RICH – Stainless Steel Spherical Plain Bearing – 20 × 35 × 16 mm

Technical Specifications:

• Type: Spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: GE 20 RC NIRO
• Inner Diameter (d): 20 mm
• Outer Diameter (D): 35 mm
• Inner Ring Width (B): 16 mm
• Outer Ring Width (C): 12 mm
• Spherical Diameter (dk): 29 mm
• Friction Pair: Stainless Steel (NIRO) / PTFE
• Dimensional Series: E
• Weight: 0.065 kg
• Country of Origin: China

Construction Features:

• Corrosion Resistance: Fully manufactured from high-grade stainless steel (NIRO) for use in corrosive or hygienic environments.
• Sliding Layer: Maintenance-free PTFE liner optimized for high unidirectional loads and long service life without lubrication.
• Precision: Hardened martensitic stainless steel inner ring provides high wear resistance and structural integrity.
• Design: Dimensional series E configuration suitable for compact radial space requirements.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
