RGXSW 20 SS RICH 20x38x25

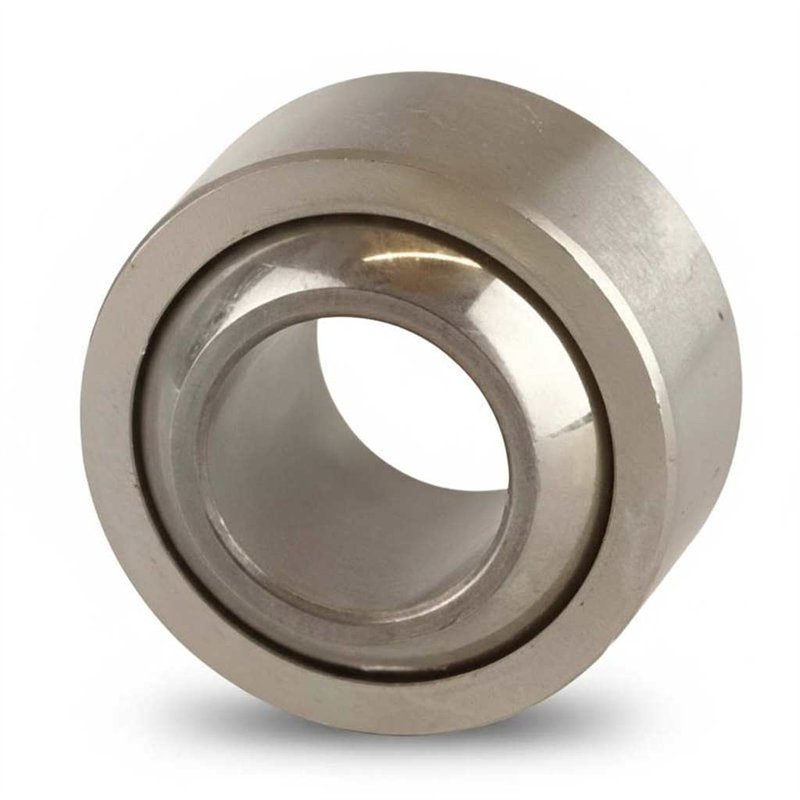

RGXSW 20 SS RICH – Stainless Steel Spherical Plain Bearing – 20 × 38 × 25 mm

Technical Specifications:

• Type: Spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: RGXSW 20 SS
• Inner Diameter (d): 20 mm
• Outer Diameter (D): 38 mm
• Inner Ring Width (B): 25 mm
• Outer Ring Width (C): 18 mm
• Spherical Diameter (dk): 34.92 mm
• Friction Pair: Stainless Steel / PTFE Composite
• Dimensional Series: K
• Weight: 0.125 kg
• Country of Origin: China

Construction Features:

• Corrosion Resistance: Constructed entirely from high-grade stainless steel, making it suitable for applications in corrosive environments and wash-down areas.
• Sliding Layer: Maintenance-free PTFE composite sliding surface designed to handle high pressure and dynamic loads without lubrication.
• Load Capacity: Engineered for superior performance under heavy dynamic stress while maintaining smooth articulated movement.
• Design Standard: Follows the K-series dimensional configuration for specific mechanical assembly requirements.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
