UCF 315 RICH

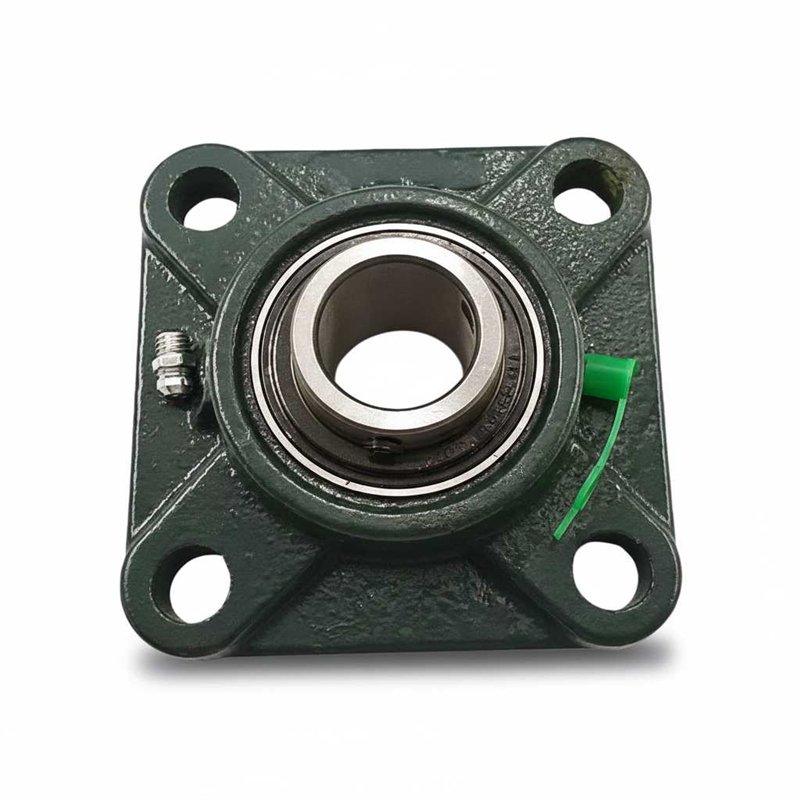

UCF 315 RICH – Cast Iron Flange Bearing Unit – 75 mm Bore

Technical Specifications:

• Type: Cast iron flange bearing unit (4-Bolt)
• Brand: RICH
• Model Designation: UCF 315
• Shaft Diameter (d): 75 mm
• Housing Length (L): 236 mm
• Mounting Hole Distance (J): 184 mm
• Housing Width (A): 66 mm
• Flange Thickness (A1): 25 mm
• Mounting Bolt Size (N): 25 mm
• Housing Material: High-strength cast iron
• Weight: 10.54 kg
• Country of Origin: China

Construction Features:

• Rigid 4-Bolt Housing: This flange bearing unit features a square cast iron housing that provides a secure, vibration-resistant mount for shafts perpendicular to the mounting surface.
• Heavy-Duty Performance: Engineered specifically for the 300-series load rating, it is designed to manage intense radial forces and higher mechanical stress than standard duty units.
• Self-Aligning Insert: The pre-installed ball bearing insert has a spherical outer ring, allowing it to automatically adjust for shaft misalignment during assembly.
• Reliable Protection: Integrated seals protect the internal rolling elements from contamination, ensuring long-term reliability in harsh industrial environments.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
