GE28-KRR-B-FA107/15 RICH 28x62x48,5

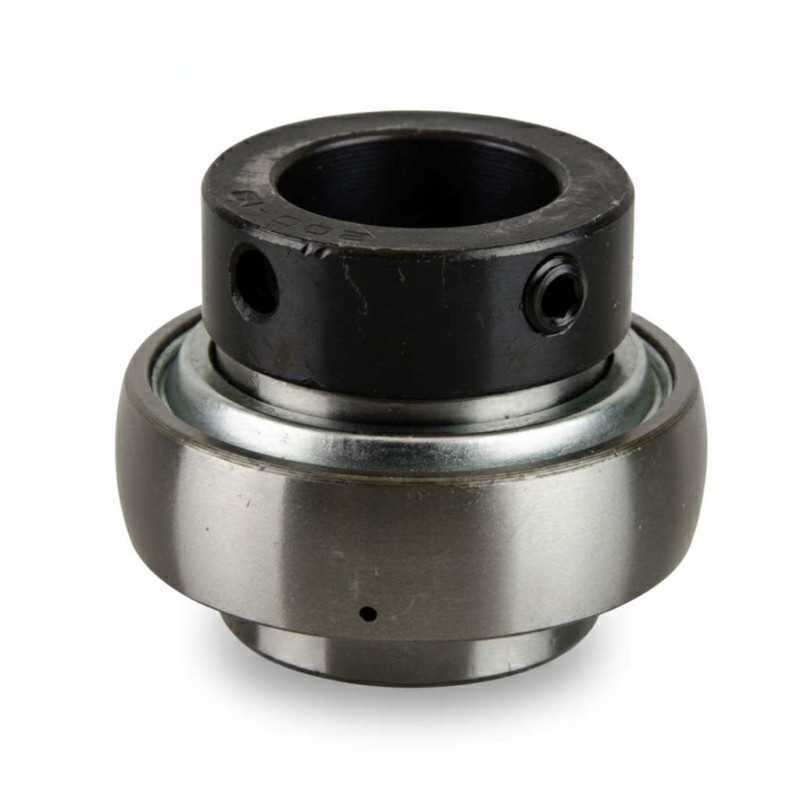

GE28-KRR-B-FA107/15 RICH – Insert Ball Bearing – 28 x 62 x 48.5 mm

Technical Specifications:

• Type: Insert ball bearing
• Brand: RICH
• Model Designation: GE28-KRR-B-FA107/15
• Inner Diameter (d): 28 mm
• Outer Diameter (D): 62 mm
• Total Width (T): 48.5 mm
• Inner Ring Width (B): 36.5 mm
• Outer Ring Width (C): 18 mm
• Radial Internal Clearance: C3 (Greater than normal)
• Outer Ring Profile: Spherical / Rounded outer ring (B)
• Sealing: Double-sided lip seal covered with a protective plate (KRR)
• Weight: 0.42 kg
• Country of Origin: China

Construction Features:

• Component Design: The unit features a specialized double-sided lip seal covered by a protective plate to shield against solid contamination and moisture.
• Ring Configuration: Engineered with an extended inner ring and a convex, rounded outer ring profile to accommodate angular misalignment.
• Clearance Specification: The internal geometry incorporates C3 radial internal clearance to allow for thermal expansion and operating loads.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
