UCF213-40 RICH

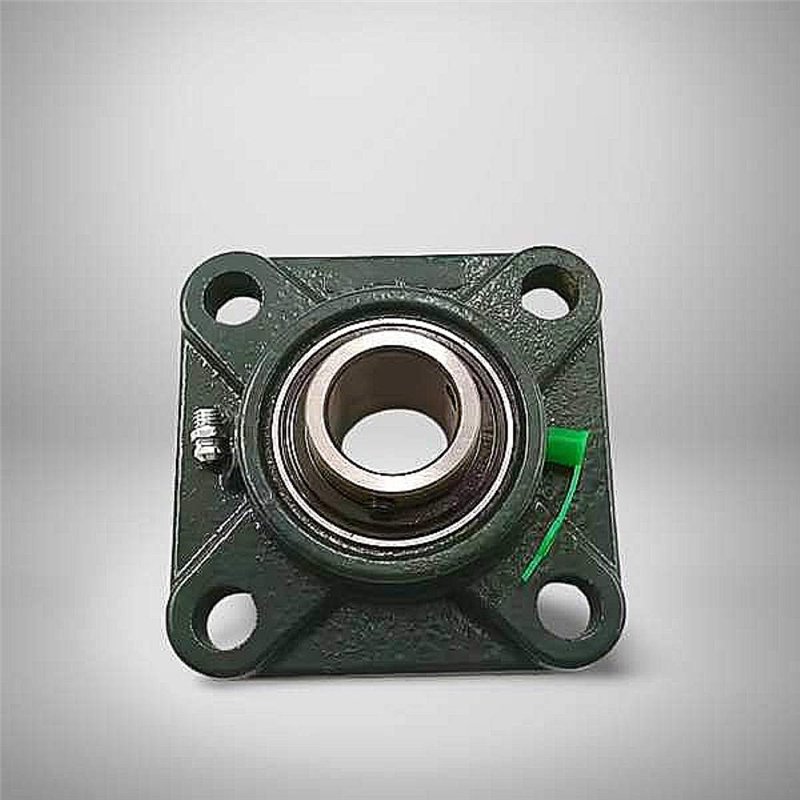

UCF213-40 RICH – Cast Iron Bearing Unit – 63.5 x 187 x 50 mm

OE References:

• DODGE: F4BSCM208

Technical Specifications:

• Type: Cast iron bearing unit (4-bolt square flange)
• Brand: RICH
• Model Designation: UCF213-40
• Shaft Diameter (d): 63.5 mm (2-1/2 inch)
• Housing Length (L): 187 mm
• Housing Thickness (A): 50 mm
• Flange Thickness (A1): 22 mm
• Mounting Hole Pitch (J): 149 mm
• Mounting Bolt Size (N): 19 mm
• Weight: 4.486 kg
• Country of Origin: China

Product Details:

• Components: Consists of a heavy-duty F213 square cast iron housing featuring four pre-drilled mounting holes, fitted with a premium UC213-40 set-screw locking insert ball bearing equipped with an extended inner ring and dual-side contact seals.
• Internal Geometry: The insert bearing features a spherical outer diameter that matches the machined concave internal bore of the cast iron flange, enabling true omnidirectional self-alignment to compensate for structural deflections or mounting misalignment during assembly.
• Dimensional Set: Standardized 213-series square configuration engineered for a 63.5 mm imperial shaft size, with a 187 mm total housing length, a 149 mm bolt hole center-to-center pitch, and a 50 mm total casing thickness profile.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
