Q 203 PP.AH02 RICH 16,256x40x18.29

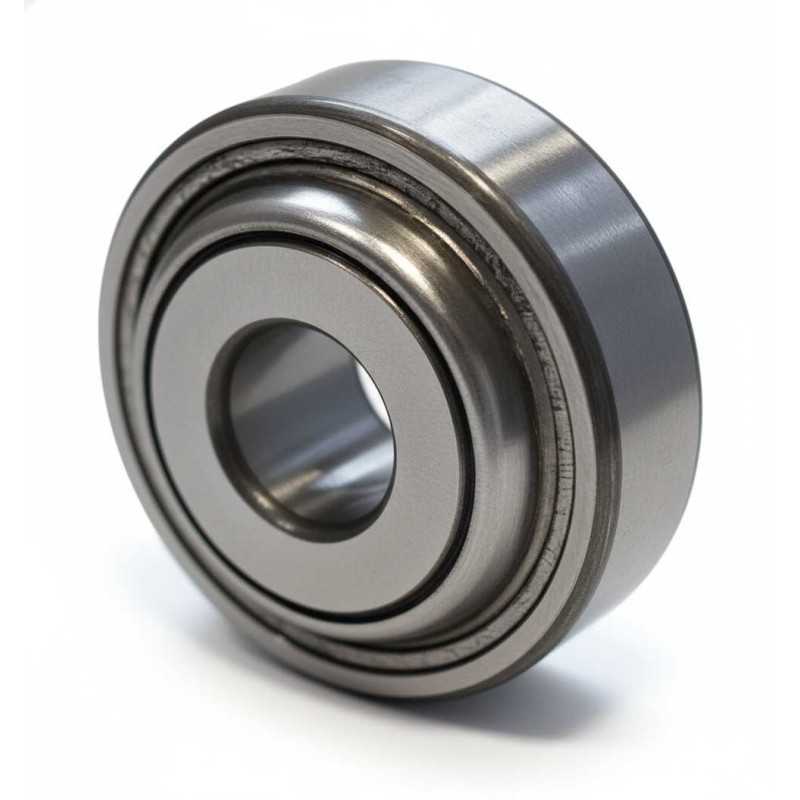

Q 203 PP.AH02 RICH – Four Point Contact Bearing – 16.256 x 40 x 18.29 mm

OE References:

• CNH: 666624R91, 2149261C91
• JOHN DEERE: AA281357, AH63076, AH100425, AN10097N, AN141120, AN142670

Technical Specifications:

• Type: Four point contact bearing
• Brand: RICH
• Model Designation: Q 203 PP.AH02
• Inner Diameter (d): 16.256 mm
• Outer Diameter (D): 40 mm
• Width (B): 18.29 mm
• Outer Ring Width (C): 12 mm
• Cage Material: Steel
• Sealing: Triple lip seal covered with metal plate on both sides (PP)
• Weight: 0.09 kg
• Country of Origin: China

Construction Details:

• Components: Outer ring, inner ring, steel cage, precision balls, and heavy-duty double-sided triple lip contact seals reinforced with steel plates.
• Configuration: Four point contact single row geometry optimized for agricultural applications subject to high contamination and low rotational speeds.
• Rolling Elements: Ball complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
