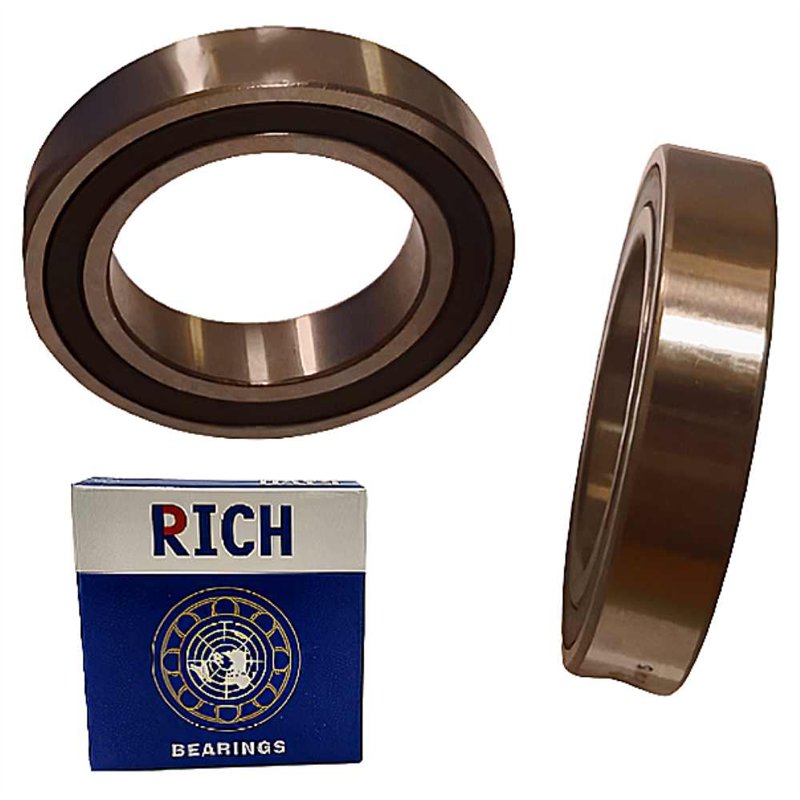

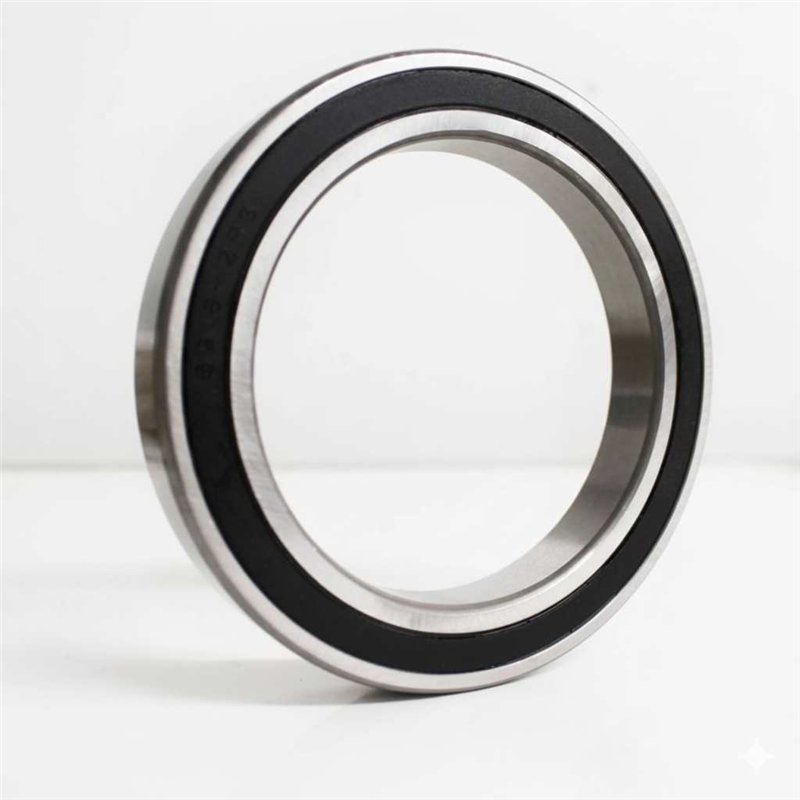

61802-2RS/C3 RICH 15x24x5 61802-2RS/C3 RICH
zoom_out_map
61802-2RS/C3 RICH 15x24x5 61802-2RS/C3 RICH

61802-2RS/C3 RICH 15x24x5

Type: Single Row Deep Groove Ball Bearing (Thin Section)
Model: 61802-2RS C3 RICH
Dimensions: 15 x 24 x 5 mm
Brand: RICH
Origin: China
RICH
61802-2RS/C3

Volume discounts

Quantity Unit price
10 €0.54
20 €0.51
50 €0.49
100 €0.46
€0.60
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

61802-2RS C3 RICH – Single Row Deep Groove Ball Bearing – 15 x 24 x 5 mm

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Product Feature: Thin-section / Space-efficient design
  • Brand: RICH
  • Model Designation: 61802-2RS C3
  • Inner Diameter (d): 15 mm
  • Outer Diameter (D): 24 mm
  • Width (B): 5 mm
  • Internal Clearance: C3 (Greater than normal)
  • Sealing: Double-sided rubber contact seals (2RS)
  • Weight: 0.007 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Precision radial ball bearing featuring a thin-section profile, specifically engineered for applications where radial space is limited and high rotational sensitivity is required.
  • Thermal Stability: Manufactured with C3 internal radial clearance to accommodate thermal expansion during high-speed operation or in environments with varying temperature gradients, preventing premature mechanical binding.
  • Protection Mechanism: Equipped with high-performance double-sided rubber contact seals (2RS) that provide a superior barrier against fine dust, moisture, and debris while effectively retaining internal lubrication.
  • Mechanical Interface: 15 x 24 x 5 mm dimensional format produced to rigorous industrial standards, ensuring smooth rotational kinematics, low frictional torque, and reliable service life in precision machinery and robotics.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
15
Outer Diameter
24
Width
5
Weight
0,007
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Cage
Steel Cage
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
