K22x32x24 RICH K22x32x24 RICH
search
  • K22x32x24 RICH K22x32x24 RICH

K22x32x24 RICH

RICH
K22x32x24
€1.80
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

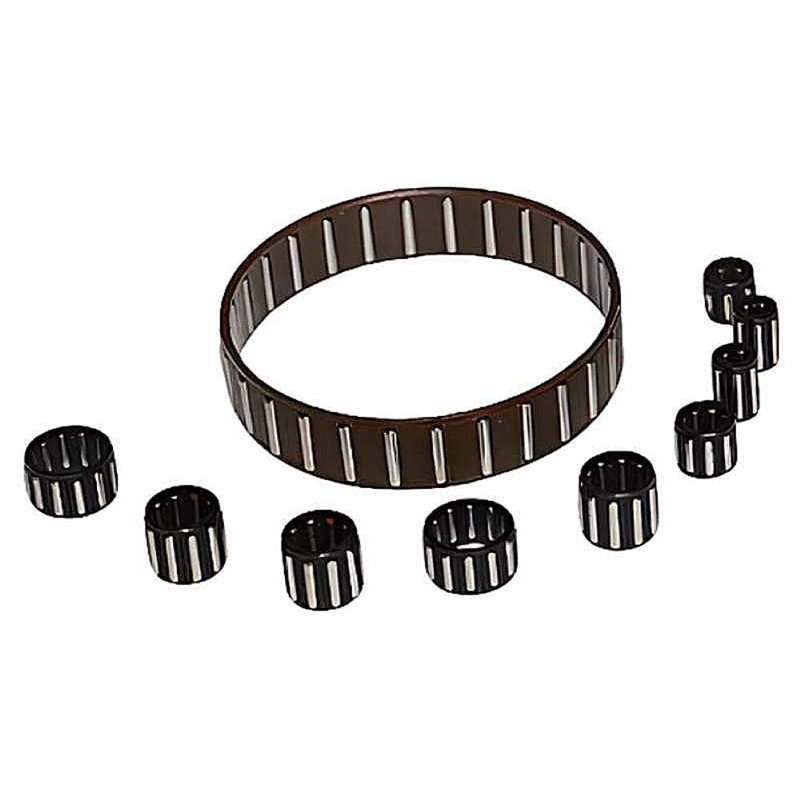

Needle Roller and Cage Assembly K 22x32x24 RICH - 22 x 32 x 24 mm with Steel Cage

The K 22x32x24 RICH is a needle roller and cage assembly engineered to provide a high radial load capacity within a compact design. This assembly does not include inner or outer rings, and its performance relies on the hardened and precisely finished surfaces of the shaft and housing bore acting as the raceways. It consists of a set of needle rollers accurately positioned and guided by a steel cage, ensuring smooth and efficient rolling motion. The dimensions indicate a nominal bore diameter (for the shaft raceway) of 22 mm, an outer diameter (intended for a 32 mm housing bore), and a width of 24 mm, with an approximate weight of 0.046 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller and Cage Assembly
  • Dimensions: 22 mm bore diameter (shaft as raceway) x 32 mm outer diameter (housing as raceway) x 24 mm width
  • Weight: 0.046 kg
  • Cage Material: Steel
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • High Radial Load Capacity
  • Compact and Lightweight Design
  • Space-Saving (eliminates the need for separate inner or outer rings)
  • Smooth and Reliable Operation due to optimized roller guidance
  • Cost-Effective for applications where raceways are already hardened and ground

Data sheet

Inner Diameter
22
Outer Diameter
32
Width
24
Cage
Steel Cage
Category
Needle Roller And Cage Assembly
