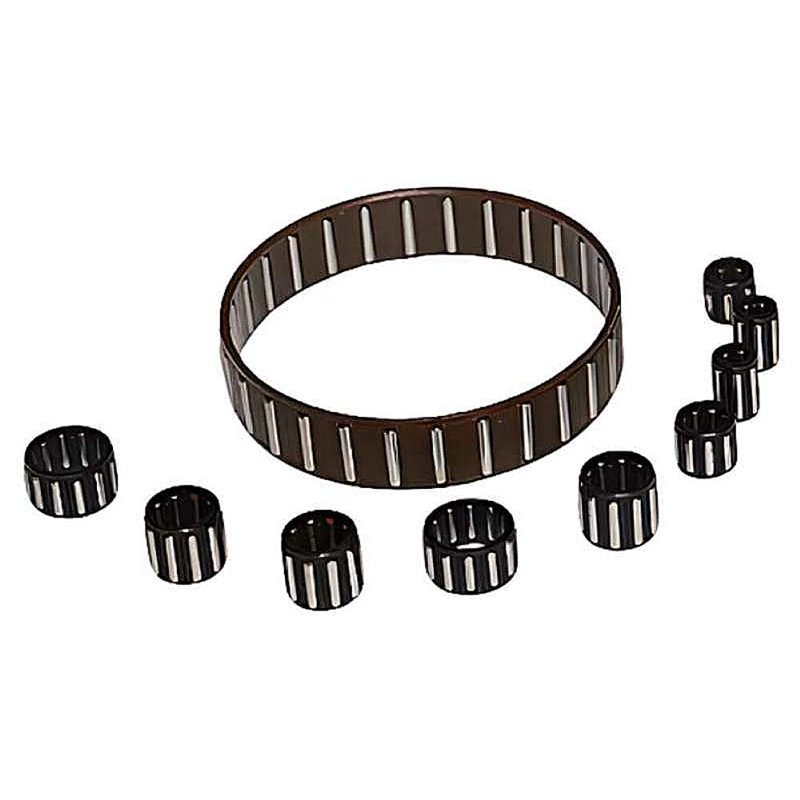

Needle Roller and Cage Assembly K 20x28x16 RICH - 20 x 28 x 16 mm with Steel Cage

The K 20x28x16 RICH is a needle roller and cage assembly designed to provide a high radial load capacity in a compact design. This assembly does not include inner or outer rings, and its performance depends on the hardened and precisely finished surfaces of the shaft and housing bore serving as the raceways. It comprises a set of needle rollers accurately positioned and guided by a steel cage, ensuring smooth and efficient rolling motion. The dimensions indicate a nominal bore diameter (for the shaft raceway) of 20 mm, an outer diameter (intended for a 28 mm housing bore), and a width of 16 mm, with an approximate weight of 0.024 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller and Cage Assembly
  • Dimensions: 20 mm bore diameter (shaft as raceway) x 28 mm outer diameter (housing as raceway) x 16 mm width
  • Weight: 0.024 kg
  • Cage Material: Steel
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • High Radial Load Capacity
  • Compact and Lightweight Design
  • Space-Efficient (no need for separate inner or outer rings)
  • Smooth and Reliable Operation due to optimized roller guidance
  • Cost-Effective for applications where raceways are already hardened and ground

Data sheet

Inner Diameter
20
Outer Diameter
28
Width
16
Cage
Steel Cage
Category
Needle Roller And Cage Assembly
