K70x78x23 RICH

RICH
K70x78x23
€6.98
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

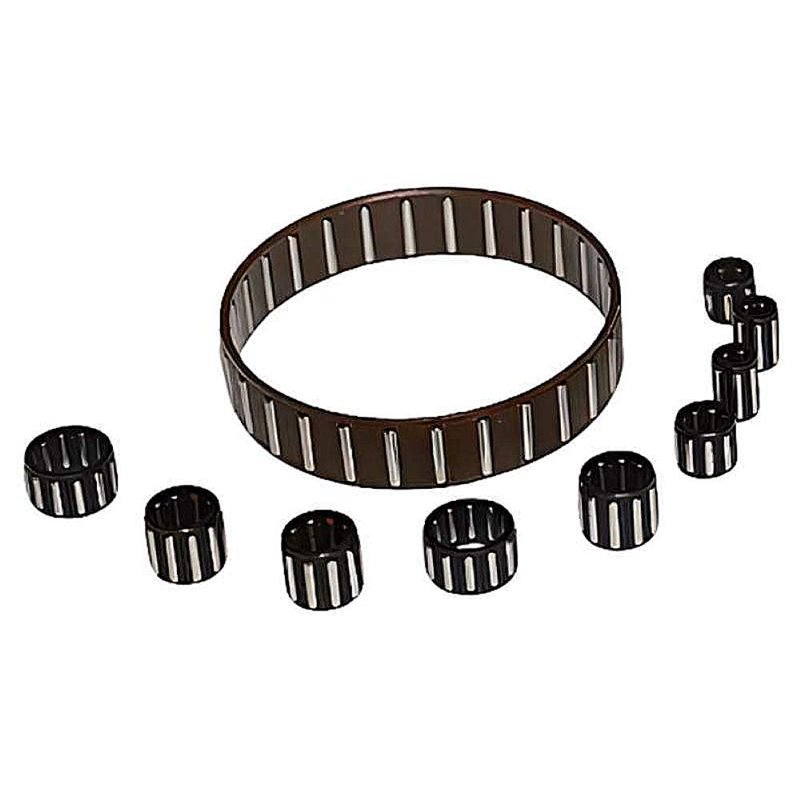

K70X78X23 RICH Needle Roller and Cage Assembly - 70 x 78 x 23 mm (Steel Cage)

The K70X78X23 RICH is a high-quality needle roller and cage assembly, designed for applications where the shaft and housing bore can serve as raceways. This assembly consists of a cage that precisely guides and retains a full complement of needle rollers, offering a very compact radial cross-section. This design allows for maximum load-carrying capacity within a minimal space, making it ideal for applications with limited radial room. The robust steel cage ensures optimal guidance of the rollers, leading to efficient and reliable operation. Its dimensions are a 70 mm bore diameter, 78 mm outer diameter, and a width of 23 mm. It has a weight of 0.118 kg. This product is manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller and Cage Assembly
  • Dimensions: 70 mm bore diameter x 78 mm outer diameter x 23 mm width
  • Weight: 0.118 kg
  • Cage: Steel
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Very high radial load-carrying capacity in a compact design.
  • Space-saving solution when shaft and housing bore can be used as raceways.
  • Precision-guided needle rollers for smooth operation.
  • Durable steel cage ensures long service life.
  • Suitable for a wide range of industrial applications requiring high load capacity and limited radial space.

Data sheet

Inner Diameter
70
Outer Diameter
78
Width
23
Cage
Steel Cage
Category
Needle Roller And Cage Assembly
