UCFC207 RICH

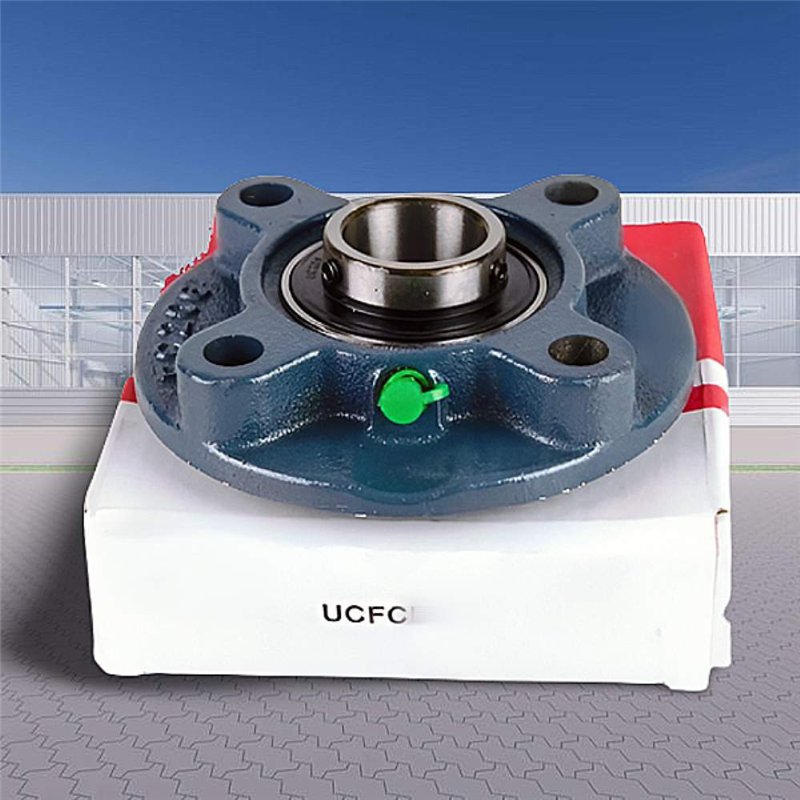

UCFC207 RICH Cast Iron Flanged Cartridge Bearing Unit - 35 mm Bore

The UCFC207 RICH is a robust flanged cartridge bearing unit featuring a cast iron housing, designed for reliable performance in various applications. This unit has a bore diameter (d) of 35 mm and weighs approximately 1.582 kg. While the provided dimensions show "35 x Additional dimensions include A1 = 9 mm, A2 = 26 mm, A = 34 mm, D2 = 110 mm, and D = 135 mm. Manufactured in China, this RICH bearing unit is a dependable choice for its size and load capacity in standard operating conditions.

Key Specifications:

• Bearing Type: Cast Iron Flanged Cartridge Bearing Unit
• Model: UCFC207 RICH
• Bore Diameter (d): 35 mm
• Weight: Approximately 1.582 kg
• A1: 9 mm
• A2: 26 mm
• A: 34 mm
• Internal Clearance: (Not specified, assuming Normal/CN)
• D2: 110 mm
• D: 135 mm
• Country of Origin: China

Key Features:

• Robust Cast Iron Housing: Provides good strength and durability for its size.
• 35 mm Bore Diameter: Suitable for common shaft sizes.
• Reliable RICH Brand: Ensures consistent quality and performance.
• Flanged Design: Simplifies mounting and installation.
