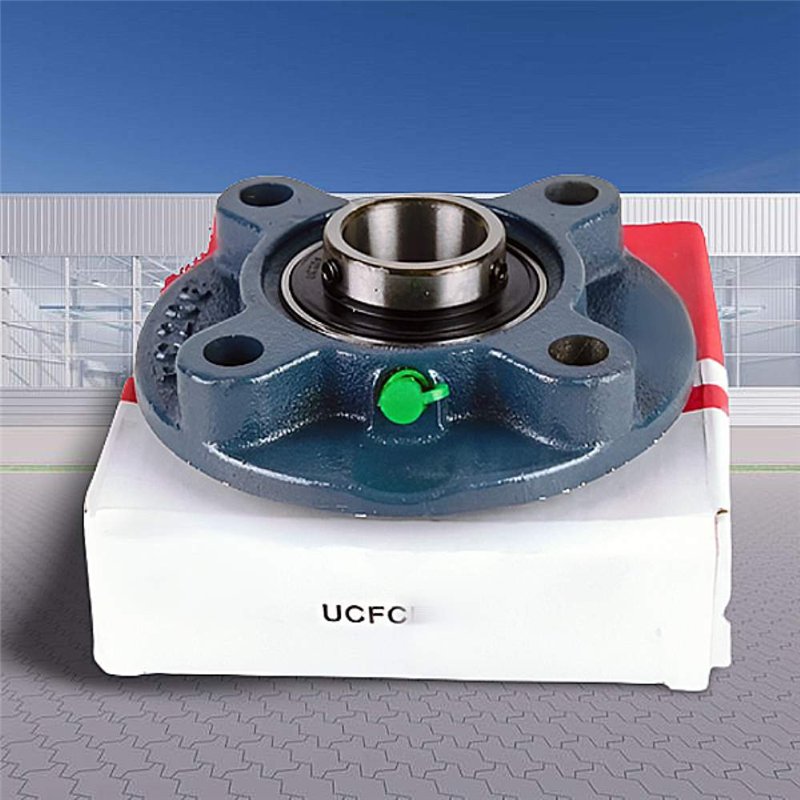

UCFC202 RICH Cast Iron Flanged Cartridge Bearing Unit - 15 mm Bore, CN Clearance

The UCFC202 RICH is a compact flanged cartridge bearing unit featuring a cast iron housing, designed for reliable performance in various applications. This unit has a bore diameter (d) of 15 mm and weighs approximately 0.725 kg. While the provided dimensions show "15 x 0 x 0", the key dimension is the bore size. Additional dimensions include A1 = 7 mm, A2 = 20.5 mm, A = 25.5 mm, and D2 = 78 mm, and D = 100 mm. It has a Normal (CN) internal clearance, suitable for applications with standard tolerances. Manufactured in China, this RICH bearing unit is a dependable choice for its size and load capacity.

Key Specifications:

  • Bearing Type: Cast Iron Flanged Cartridge Bearing Unit
  • Model: UCFC202 RICH
  • Bore Diameter (d): 15 mm
  • Weight: Approximately 0.725 kg
  • A1: 7 mm
  • A2: 20.5 mm
  • A: 25.5 mm
  • Internal Clearance: CN (Normal)
  • D2: 78 mm
  • D: 100 mm
  • Country of Origin: China

Key Features:

  • Robust Cast Iron Housing: Provides good strength and durability for its size.
  • 15 mm Bore Diameter: Suitable for common shaft sizes.
  • Standard Clearance (CN): Appropriate for typical operating tolerances.
  • Reliable RICH Brand: Ensures consistent quality and performance.
  • Compact Flanged Design: Simplifies mounting in space-constrained environments.

Data sheet

Inner Diameter
15
Outer Diameter
100
Width
31
Weight
0,72
Sealing
Lip Seal On Both Sides
