  • UCFC218 RICH UCFC218 RICH

UCFC218 RICH

RICH
UCFC218
€68.32
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

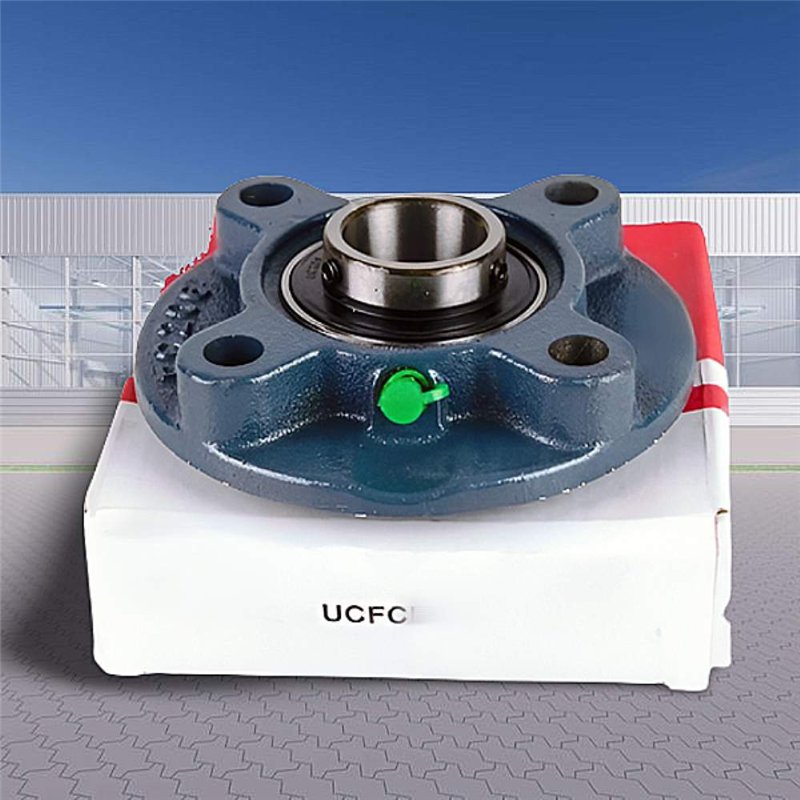

UCFC218 RICH Cast Iron Flanged Cartridge Bearing Unit - 90 mm Bore, C3 Clearance

The UCFC218 RICH is a robust flanged cartridge bearing unit featuring a cast iron housing, designed for reliable performance in demanding applications. This unit has a bore diameter (d) of 90 mm and weighs approximately 12.947 kg. While the provided dimensions show "90 x 0 x 0", the key dimension is the bore size. Additional dimensions include A1 = 20 mm, A2 = 50 mm, A = 68 mm, D2 = 220 mm, and D = 265 mm. It incorporates a durable steel cage and has a C3 internal clearance, which is greater than normal, making it suitable for applications with higher operating temperatures or potential misalignment. The sealing system features a double-sided lip seal covered with steel sheet washers with an outer flinger shield for enhanced corrosion protection. Manufactured in China, this RICH bearing unit offers a dynamic load rating of 96000 N.

Key Specifications:

  • Bearing Type: Cast Iron Flanged Cartridge Bearing Unit
  • Model: UCFC218 RICH
  • Bore Diameter (d): 90 mm
  • Weight: Approximately 12.947 kg
  • A1: 20 mm
  • A2: 50 mm
  • A: 68 mm
  • Cage Material: Steel
  • Internal Clearance: C3 (Greater than Normal)
  • D2: 220 mm
  • Dynamic Load Rating: 96000 N
  • D: 265 mm
  • Sealing: Double-sided lip seal covered with steel sheet washers with outer flinger shield and corrosion protection.
  • Country of Origin: China

Key Features:

  • Robust Cast Iron Housing: Provides excellent strength and durability.
  • 90 mm Bore Diameter: Suitable for shafts of this size.
  • C3 Clearance: Ideal for applications with higher temperatures or potential misalignment.
  • Enhanced Sealing: Offers excellent protection against contaminants and corrosion.
  • High Load Capacity: Capable of handling significant dynamic loads.
  • Reliable RICH Brand: Ensures consistent quality and performance.
  • Flanged Cartridge Design: Simplifies mounting and installation.

Data sheet

Inner Diameter
90
Outer Diameter
265
Width
96
Weight
12,96
Sealing
Lip Seal On Both Sides
