W208PPB12 RICH 29,972x85,75x36,513

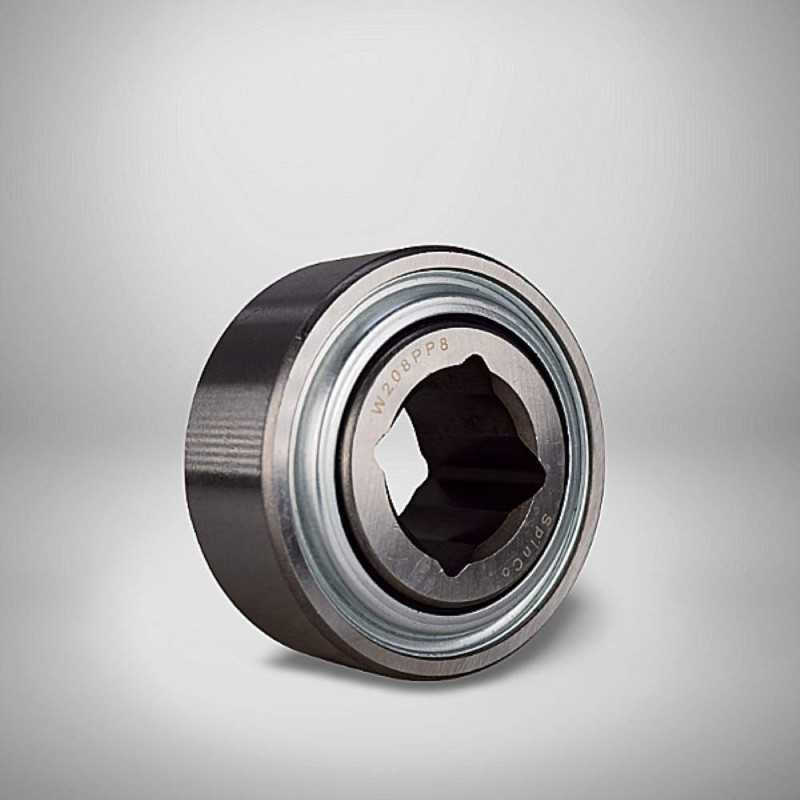

W208PPB12 RICH Insert Ball Bearing with Square Hole – 29.972 x 85.75 x 36.513 mm – Triple-Sealed for Extreme Conditions

Experience unmatched durability and performance in the most challenging environments with the W208PPB12 RICH insert ball bearing. This specialized bearing is engineered to thrive where standard bearings fail, making it the perfect solution for agricultural machinery and industrial applications exposed to heavy contamination. With its unique square bore design, it ensures a secure fit on square shafts, providing robust power transmission.

Boasting precise dimensions of 29.972 mm square bore, an 85.75 mm outer diameter, and an overall width of 36.513 mm, this bearing is crafted for demanding operational conditions. The RICH W208PPB12 stands out with its advanced triple lip seal, covered with a metal plate on both sides. This sophisticated sealing system offers unparalleled protection against dust, dirt, moisture, and other harsh contaminants, significantly extending the bearing's lifespan even in heavily soiled settings. While optimized for low rotation speeds due to its robust sealing, its rounded outer ring ensures easy alignment and installation into spherical housings, accommodating initial misalignment effortlessly.

Manufactured in China by RICH, this heavy-duty insert ball bearing weighs a substantial 0.88 kg. Its CN (normal) clearance ensures reliable performance, while its steel cage provides exceptional durability. Ideal for demanding agricultural equipment, construction machinery, and specialized industrial applications, the W208PPB12 RICH bearing is your go-to choice for superior protection and steadfast operation in the harshest conditions.

Technical Specifications:

• Type: Insert Ball Bearing with Square Hole
• Model: W208PPB12
• Brand: RICH
• Inner Diameter (Square Bore): 29.972 mm
• Outer Diameter (D): 85.75 mm
• Overall Width (Inner Ring): 36.513 mm
• Outer Ring Width (C): 30.163 mm
• Shaft Size: 1 1/8" (28.575 mm)
• Clearance: CN (Normal Clearance)
• Sealing: Triple lip seal covered with metal plate on both sides (suitable for heavily contaminated applications, low rotation speeds)
• Rounded Outer Ring: Yes
• Weight: 0.88 kg
• Country of Origin: China

Cross-Reference / Interchangeable with:

• IH K3316 CASE
• IH T28503 CASE
• T28503 CASE
• A-W208PPB12 JOHN DEERE
• PMD208TT12 JOHN DEERE
• 447899M1 MASSEY FERGUSON
• T28503 NEW HOLLAND

Key Performance Advantages:

• Extreme Contaminant Protection: The triple lip seal with metal covers provides superior defense against harsh environments, extending bearing life in dirty applications.
• Robust Square Bore: Designed specifically for square shafts, ensuring firm grip and efficient power transfer.
• Self-Aligning Capability: Rounded outer ring allows for easy installation and compensates for shaft misalignment.
• Durable Construction: Built to withstand demanding agricultural and industrial loads, ensuring long-term reliability.
• Versatile Application: Ideal for heavy-duty machinery where exposure to significant contamination is a concern.
• RICH Quality Assurance: Produced in China to high manufacturing standards, guaranteeing dependable performance.
