81206 RICH 30x52x16

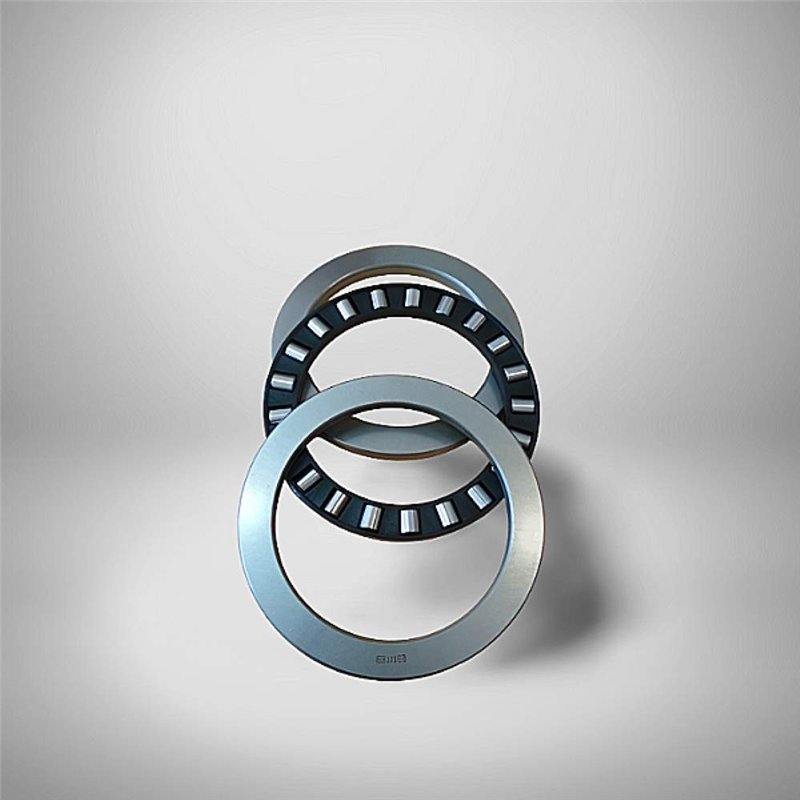

81206.TN RICH – Axial Cylindrical Roller Bearing – 30 x 52 x 16 mm

Technical Specifications:

• Type: Axial cylindrical roller bearing
• Brand: RICH
• Model Designation: 81206.TN
• Inner Diameter (d): 30 mm
• Outer Diameter (D): 52 mm
• Total Height (H): 16 mm
• Cage Material: Polyamide (TN)
• Weight: 0.124 kg
• Country of Origin: China

Performance Characteristics:

• Structural Configuration: Thrust bearing consisting of a cylindrical roller and cage assembly, a shaft washer, and a housing washer.
• Cage Specification: Features a glass-fiber reinforced polyamide cage (TN) for reduced weight and optimized roller guidance.
• Load Management: Engineered to support heavy axial loads in one direction with high mechanical stiffness.
• Mechanical Interface: 30 x 52 x 16 mm dimensional format produced according to standardized industrial tolerances.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
